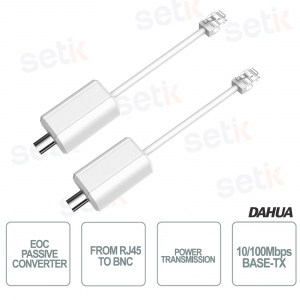

EoC 2 RJ45-BNC passive converter Dahua power supply

EoC 2 RJ45-BNC passive converter Dahua power supply
-58%

LR1002 Dahua 2x Passive EoC Converters , for video signal conversion from RJ45 to BNC . It transmits power via coaxial cable even at great distances, equipped with a BNC coaxial port and an RJ45. Double transmission mode (100Mbps and 10Mbps).

Reference: LR1002

Brand: Dahua

EAN: 8057457610094

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

EoC 2 PASSIVE VIDEO SIGNAL CONVERTERS FROM RJ45 TO BNC - POWER SUPPLY - DAHUA TECHNOLOGY

Made by Setik 2 Passive EoC Converters - Dahua Technology
Converts video signal from RJ45 to BNC - Transmits power via coaxial cable
Support RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
It supports IEEE802.3, IEEE802.3u standards

Product details

Convertitore EoC Passivo RJ45 a BNC

  • 2 PIECES!
  • EoC extenders - Dahua Technology
  • Passive - ePoE specific
  • Convert video signal from RJ45 to BNC
  • Transmits power via coaxial cable even over long distances
  • Ports: 1x RJ45 10/100Mbps, 1x BNC
  • Dual transmission modes (100Mbps and 10Mbps)
  • Support RG59 coaxial cable: 400m /100Mbps ( maximum distance ), 1000m/10Mbps
  • It supports IEEE802.3, IEEE802.3u standards
  • It supports self-adaptive MDI/MDIX
  • Compatible with ePoE to PoE and Hi-PoE converters
  • Quality product

Data sheet

model LR1002
Function Port

1*10/100Mbps Base-TX
1*BNC

power consumption <1W
Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
PoE Protocol - (Based on the power input from the ePoE switch)
Network Standard IEEE802.3, IEEE802.3u
lightning protection Common Mode 6KV Differential Mode 2KV
Operating Temperature -40°C-60°C
Operating Humidity 0%~95%
Weight 28.3g
Dimensions (W×D×H) 56mm×27mm×21mm

Further details


Schema connessione LR1002
