HDMI to Network Transmitter. Maximum transmission range up to 120Mt. Support resolutions up to 1080P FULL HD and is compatible with cables: CAT5 / CAT5e / CAT6. Converts HDMI signal to the TCP / IP standard and transmits it via internet or LAN cable. IEEE-568B standard. HDMINET-TX



Reference: HDMINET-TX

Brand: Setik

EAN: 8056450379816

Manufacturer Object ( [id] => 7 [name] => Setik [description] =>

Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!

[short_description] =>

Setik was founded in 2012.
Initially 10 products in the catalogue, today almost 4,000.

[id_address] => [date_add] => 2012-03-20 12:17:52 [date_upd] => 2022-04-19 17:28:56 [link_rewrite] => setik [meta_title] => Made by Setik [meta_keywords] => setik, cctv, Made by Setik [meta_description] => Setik CCTV production [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HDMI-NETWORK TRANSMITTER WITH MAXIMUM CAPACITY UP TO 120 METERS - SETIK

Schema funzionamento - HDMINET-TX
It allows to transmit the HDMI signal up to 120MT on a local network.

Product details

  • HDMI transmitter - Setik
  • Extends the HDMI signal up to 100 meters at 1080P over CAT5 cable
  • Complies with the IEEE-568B standard
  • Supports resolutions up to 1080P FULL HD
  • Supports bandwidth: 100M
  • HDCP compliant
  • Possibility to connect more than one receiver to one transmitter ( HDMINET-RX )
  • Connectable in different ways - Take a look at the "More Details" section
  • Extension thanks to router or LAN connection, cable length required as follows:
  • CAT5 Maximum 80 meters between the two devices
  • CAT5e Maximum 100 meters between the two devices
  • CAT6 Maximum 120 meters between the two devices
  • Power supply included in the package
  • Warning! Requires RX to receive the signal. Click here
Dettagli del trasmettitore HDMI HDMINET-TX

Data sheet

No technical data sheet available

More details

HDMINET-TX - HOW CAN I CONNECT IT?
Connessione Point to Point

Point to Point

Direct connection via UTP / STP Cat5 / 6 cable between Transmitter and Receiver (max 120mt)

HDMINET-TX Point to Point

Connessione Point to Multipoint

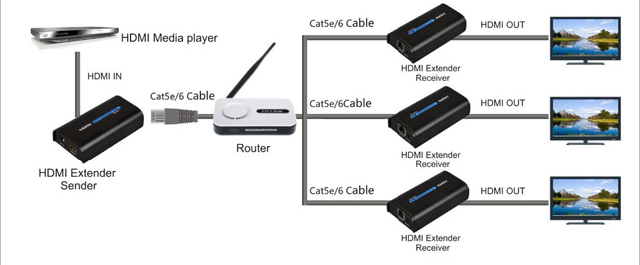

Point to Multipoint

Star connection via UTP / STP Cat5e / 6 cables using a switch.

HDMINET-TX Point to Multipoint

Modalità Cascata

Cascade Mode

Cascade connection using UTP / STP Cat5e / 6 cables using cascade-connected switches

HDMINET-TX Cascade Mode

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
