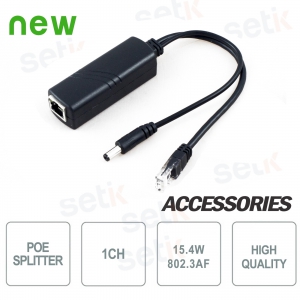

PoE Splitter 1Ch 15.4W for camera power supply - Setik

PoE Splitter 1Ch 15.4W for camera power supply - Setik
QUESTIONS ABOUT THE PRODUCT

 
-40%

PoE splitter useful for powering cameras via CAT5 cable. Power 15.4W , IEEE802.3af support, 12V 1.25A, supports 10 / 100M. Quality product. Setik. POESP100

Reference: POESP100

Brand: Setik

EAN: 8058258760582

FIND INSTALLER

Quantity discount:
from 5 to ∞ : 10,47 € (-10%)
from 3 to 4 : 11,06 € (-5%)
from 1 to 2 : 11,64 €

€11.64

€19.40 -40%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity

SPLITTER POE 15.4W FOR POWER SUPPLY TO CAMERAS - SETIK

Prodotto marca Setik PoE Splitter 1Ch - Setik
Power 15.4W - Ideal for powering surveillance cameras via CAT5 cable
IEEE802.3af - 10 / 100M support - PoE module not required (already integrated)

POE - POWER OVER ETHERNET
protocollo PoE Today, PoE products are essential for powering peripheral devices on the network, the existing standards are 802.3af and 802.3at, as well as a sea of NON-STANDARD products, make sure you only buy products that meet these standards so as to guarantee any compatibility in the present and in the future. Setik imports, distributes and guarantees its own products suitable for supporting any PoE device.
SPLITTER POE - WHAT ARE THEY FOR?
The PoE splitters divide the PoE signal into a network signal and a DC power supply.
The splitter input is fully compatible with the IEEE802.3af / at standard and ends with the 12V DC 1A power supply.
The network signal is compatible with IEEE802.3u 10Base-T / 100Base-TX.
The PoE splitter can work with a PSE (PoE switch) to provide network and DC power to network devices that do not support PoE (like some IP cameras).
The PoE splitter is widely used in video surveillance and network engineers.

Product details

PoE Splitter RJ-45 10/100Mbps

  • PoE Splitter 1Ch - Setik
  • Ideal for powering cameras through CAT5 cable
  • Maximum Power 15.4W
  • IEEE802.3af Ethernet protocol
  • RJ45 10 / 100Mbps
  • 12V, 1.25A
  • No need for PoE module (already integrated)
  • 24 Months Italian Warranty

Schema dimostrativo su connessione splitter poe

Data sheet

Model POESP100
PoE Power Supply
Rate 10 / 100M
Input power DC 48V / 0.35A
Output Power

Output voltage: 12V

Output current (MAX): 1.25A

POE Features Support IEEE802.3 af standard (15.4W) Power Supply Mode Support 1/2 (+), 3/6 (-) Interface Type

1 RJ45 input port:

1 RJ45 port output:

1 DC output port

Protocol Standard

IEEE 802.3 i 10 BASE-T

IEEE 802.3 u 100 BASE-TX

IEEE 802.3 x Flow Control

IEEE 802.3 af power over ethernet

LED indicator

Yellow light: POE

Operating Temperature

-20 - 50 °

Storage Temperature

-30 - 60 °

Operating Humidity

10% - 90% (Non-condensing)

Storage Humidity

5% - 95% (Non-condensing)

Dimensions

84mm * 28mm * 25mm

DC connector (OD * ID) 5.5 * 2.1mm Negotiation model Support Auto-MDIX Physical medium

10/100 Base-TX: 3/4/5 twisted-pair

Support maximum transmission distance 100M

Weight

0.05Kg

More details

Dettaglio splitter poe Setik POESP100

Download

Depliant not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form

Questions (1)

From Stefano Tiano | 2018-05-12 19:57:27

funziona anche al contrario, da una telecamera poe a switch normale più alimentatore

administrator

Buongiorno,


lo splitter rende una normale camera IP alimentabile tramite uno switch Poe utilizzando il solo cavo di rete e nient'altro.


Restiamo a disposizione.
