The HDTOALL is a converter able to convert the video signal of 4 different technologies: TVI / AHD / CVI / ANALOG in HDMI / VGA / BNC signal. VGA and HDMI outputs with resolution up to 1080P, the VGA and BNC signal can be connected to the converter at the same time. NTSC and PAL video format via button. Setik HDTOALL
Reference: HDTOALL
Brand: Setik
EAN: 8058258766829
FIND INSTALLER
€116.39
€193.98 -40%
discover the available quantity

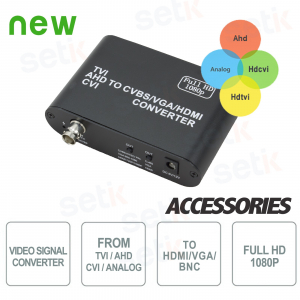

TVI / AHD / CVI / CVBS VIDEO SIGNAL CONVERTER TO HDMI / VGA / CVBS - SETIK
Video signal converter Setik Converts from TVI / AHD / CVI / ANALOG to HDMI / VGA / BNC
Video outputs VGA / HDMI up to 1080P resolution
Quality product
Product details
- Video signal converter 4in1 - Setik
- Converts TVI / AHD / CVI / ANALOG video signal to HDMI / VGA / BNC signal
- VGA / HDMI resolution up to 1080P
- HDMI output format: 720P @ 50 / 60Hz, 1080P @ 50 / 60Hz
- The converter's default signal output is HDMI / VGA, it can switch between VGA / BNC via a button.
- Video input system: NTSC / PAL via button
- The VGA and BNC signals can be connected simultaneously to the converter, the output signal can be switched by the DIP switch.
- Compatible with HDCP, HDMI1.4
- 5-12V DC power supply interface
- Supports AHD 500m signal
- Supports smooth video output without signal loss, polarized screen.
- CE certificate, FCC, RoHS
- 24 month warranty
Data sheet
More details
How does it work?
| HDTOALL | |
|---|---|
|
The HDTOALL video encoder is able to transfer, thanks to a digital process, the signal of 4 different TVI / AHD / CVI / ANALOGIC technologies to HDMI / VGA / BN C outputs, improving image quality making it sharper and more stable . |
The converter transfers the signal on VGA / HDMI with resolution up to 1080P, it is easy to use and thanks to the coaxial cable it will be possible to carry the AHD signal up to a distance of 500mt
Below is a demonstration scheme:
