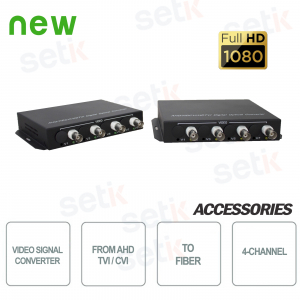

Pair of AHD/TVI/CVI signal converters to 4-channel 2.5w fiber optics - Setik

Pair of AHD/TVI/CVI signal converters to 4-channel 2.5w fiber optics - Setik
-50%

Pair of converters capable of receiving the signal from AHD / HDTVI / HDCVI cameras and converting it into FIBER OPTICS. FULL-HD resolution , Power consumption 2.5W (input: DC12V 1A) 4-channel transmitter + receiver. Automatic identification of the input video format, 4 status indicator LEDs. FC connection . Transmission on Mono-Modal Fiber (Single-Mode) . Setik 4XACT-FIBER

Reference: 4XACT-FIBER

Brand: Setik

EAN: 8058258763033

Manufacturer Object ( [id] => 7 [name] => Setik [description] =>

Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!

[short_description] =>

Setik was founded in 2012.
Initially 10 products in the catalogue, today almost 4,000.

[id_address] => [date_add] => 2012-03-20 12:17:52 [date_upd] => 2022-04-19 17:28:56 [link_rewrite] => setik [meta_title] => Made by Setik [meta_keywords] => setik, cctv, Made by Setik [meta_description] => Setik CCTV production [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AHD/TVI/CVI TO FIBER OPTIC SIGNAL CONVERTER - 2.5W - 4 CHANNELS - 10KM - SETIK

Prodotto marchiato Setik
Signal Converter - Setik
Power consumption 2.5W (input: DC12V 1A)
Receives the signal from AHD / TVI / CVI cameras and converts it into FIBER OPTICS
1 Four-channel Transmitter + 1 Four-channel Receiver
Transmission on Single-Mode Fiber - Maximum range of single-mode optical fiber 10 km

Product details

Convertitore di segnale video. Da AHD / HDTVI / HD-CVI a FIBRA OTTICA.

  • Signal Converter - Setik
  • Receives signal from AHD / HDTVI and HD-CVI cameras and converts it into FIBER OPTICS
  • 8-channel models also available
  • Transmission on Single-Mode Fiber. Max. distance 10km.
  • FULL-HD resolution
  • Physical Fiber Interface: FC
  • Status indicator LEDs
  • DC Output: 12V
  • The packages (2x) contain: 1x Transmitter + Power supply, 1x Receiver + Power supply and User manuals
  • It is possible to connect only 4 cameras

Technical data sheet

Model 4XACT-FIBER
Description 4 channels HD-CVI/ TVI/ AHD Coaxial HD Fiber Converter
Fiber interface Single mode single fiber FC/UPC
Input/Output Impedance 75Ω (Non-equilibrium)
Video Bandwidth 45MHz
Video Voltage 500MVP-P
Input Reflection Loss on Transmitting Terminal >15dB
Maximum Jitter on Receiving Terminal <0.2IU
Rise/Fall Time on Video Receiving Terminal <0.8ns
Video interface BNC
Transmission distance 10KM
Video bandwidth 45MHZ
Video resistance 75Ω
Support video format HD-CVI/ HD-TVI/ HD-AHD
Support video pixels 1920×1080P, 1280×960P, 1280×720P
Camera Support CVI: 1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720)
AHD: 1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720)
TVI: 1080P/2MP (1920×1080), 960P/1.3MP (1280×960), 720P/1MP (1280×720)
Date format RS485, does not support coaxial encryption
Date rate 0~200Kbps
Bit error rate < 10-9
Data interface Terminal Block
Power Consumption 2.5W (input: DC12V 1A)
Working Environment Operating temperature: -30°C ~ +75°C
Storage temperature: -40°C ~ +85°C
Relative humidity: 0 ~ 95% (no condensation)
Power Adapter External power adapter (input AC100-240V 50/60Hz; output 12V 1A)
Dimensions Product Size: 165(L)*145(W)*25(H)mm

Further details

How does it work?


1) Connect AHD/HDTVI or HDCVI cameras to the transmitter
2) Connect the transmitter to the receiver. In this way the signal is converted from the chosen technology to FIBER OPTICS
3) Using a video cable, connect the receiver to the recorder or other external devices

Schema funzionamento 4xact-fiber
