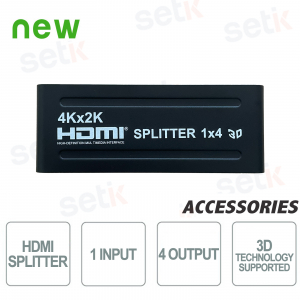

HDMI 1.3 Splitter (3D Technology Supported), 1 Input, 4 Outputs, 4K Extremely Small Size. Setik HDMISPL1-4

Reference: HDMISPL1-4

Brand: Setik

EAN: 8056450379847

FIND INSTALLER

€36.60

€73.20 -50%
taxes included
Tax included
  Available
 Available
discover the available quantity


HDMI SPLITTER 1 INPUT + 4 OUTPUTS - 4K - SETIK

HDMISPL1-4 immagini.jpg
HDMI splitter to Standard 1.3 (3D and 4K support), small size, suitable for all those cases where it is required to duplicate the HDMI signal (e.g. second monitor for cameras).

Product details

  • Split HDMI signal
  • Supports 4K
  • 1 HDMI Input - 4 HDMI Outputs
  • LED indicators
  • Supports 3D technology
  • Energy Saving: With Energy-Saving technology, the energy consumption is less than 1W
  • HDCP compliant (both IN and OUT)
  • Dimensions: 156mmx79mmx17mm
  • Material: Aluminum
  • Color: Black
  • Weight 205g
  • Package includes: 1x HDMI SPlitter + 1x DC 5V /1A Power Supply + English User Manual

Technical data sheet

ITEM DESCRIPTION
Features HDMI Splitter Distribute 1 HDMI source to 4 HDMI displays simultaneously
HDMI Extender Extend HDMI signal up to 30 meters for input and 25 meters for output
HDMI Resolution Up to 4K X 2K and support full 3D format
Energy Saving With energy-saving technology, power consumption is as low as 1W
Power Power Supply Mode Power adapter 5V/1A
Voltage DC 5V
Consumption <5W
HDMI
Input
HDCP Compliant

Yes

HDMI Resolution Support

480i@60Hz, 480p@60Hz
576i@50Hz, 576p@50Hz
720p@50/60Hz, 1080i@50/60Hz
1080p@50/60Hz, 1080p@24Hz 3D
720p@50/60Hz 3D, 4K X 2K

HDMI graphic resolution support

640x480@60Hz, 800x600@60Hz
1024x768@60Hz, 1280x720@60Hz
1280x768@60Hz, 1280x960@60Hz
1280x1024@60Hz, 1360x768@60Hz
1366x768@60Hz, 1400x1050@60Hz
1440x900@60Hz, 1600x900@60Hz
1680x1050@60Hz, 1920x1080@60Hz

Color format support

24-bits / Deep color 30 bits / Deep color 36-bits

Max Data Rate 10.2Gbps
TMDS signal 0.5-1.5Vp-p (TMDS)
DCC Signal 5Vp-p (TTL)
The length for HDMI cable <=30m(AWG26 standard HDMI cable)
HDMI Output HDCP Compliant Yes
HDMI graphic resolution support 640x480@60Hz, 800x600@60Hz
1024x768@60Hz, 1280x720@60Hz
1280x768@60Hz, 1280x960@60Hz
1280x1024@60Hz, 1360x768@60Hz
1366x768@60Hz, 1400x1050@60Hz
1440x900@60Hz, 1600x900@60Hz
1680x1050@60Hz, 1920x1080@60Hz
HDMI Resolution Support 480i@60Hz, 480p@60Hz
576i@60Hz, 576p@50Hz
720p@50/60Hz, 1080i@50/60Hz
1080p@50/60Hz, 1080p@24Hz 3D
720p@50/60Hz 3D, 4K X2K
Color format support 24-bits / Deep Color 30 bits / Deep color 36-bits
Max Data Rate 10.2Gbps
TMDS signal 0.5-1.5Vp-p (TMDS)
DCC Signal 5Vp-p (TTL)
The length for HDMI cable <=25m (AWG26 standard HDMI cable)
Protection Type ESD protection

1a Socketed discharge Level 3
1b Air discharge Level 3
Executive Standard; IEC61000-4-2

Operating Environment Operation Temperature -10-55°C
Storage Temperature -20-70°C
Relative Humidity (non-condensing) 0-95%
Product Dimensions (LxWxH) 156mmx79mmx17mm
Material Aluminum alloy
Color Black
Weight 205g
Reliability (MTBF) >30000 hours
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
