HDMI 1.3 Splitter / Splitter (3D Technology Supported), 1 Input, 4 Outputs, 4K Extremely small size. Setik HDMISPL1-4
FIND INSTALLER
https://www.setik.biz/en/video-accessories/1622-setik-hdmispl1-4-hdmi-splitter-1-input-4-output-setik.html
€138.35
€230.58 -40%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%

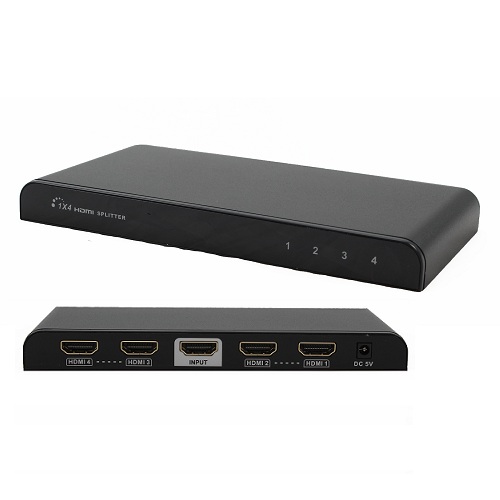

HDMI SPLITTER 1 IN + 4 OUT - 4K - SETIK
HDMI splitter to Standard 1.3 (3D and 4K support), small size, suitable in all those cases where it is required to duplicate the HDMI signal (eg second monitor for cameras).
Product details
- Dual HDMI signal
- Support 4K
- 1 HDMI input - 4 HDMI outputs
- LED indicators
- It supports 3D technology
- Energy Saving: With Energy-Saving technology, the energy consumption is less than 1W
- HDCP compliant (both IN and OUT)
- Dimensions: 156mmx79mmx17mm
- Material: Aluminum
- Black colour
- Weight 205g
- The package includes: 1x HDMI SPlitter + 1 DC 5V / 1A Power Supply + User Manual in English
Data sheet
| ITEM | DESCRIPTION | ||
|---|---|---|---|
| Features | HDMI Splitter | Distribute 1 HDMI source to 4 HDMI displays simultaneously | |
| HDMI Extender | Extend HDMI signal up to 30 meteres for input and 25 meters for output | ||
| HDMI Resolution | Up to 4K X 2K and support full 3D format | ||
| Energy-Saving | With energy-saving technology, power consumption is as low as 1W | ||
| Power | Power Supply mode | Power Adapter 5V / 1A | |
| Voltage | DC 5V | ||
| Consumption | <5W | ||
| HDMI Input | HDCP Compliance | Yes | |
| HDMI Resolution support | 480i @ 60Hz, 480p @ 60Hz | ||
| HDMI graphic resolution support | 640x480 @ 60Hz, 800x600 @ 60Hz | ||
| Color format support | 24-bits / Deep color 30 bits / Deep color 36-bits | ||
| Max Data rate | 10.2Gbps | ||
| TMDS signal | 0.5-1.5Vp-p (TMDS) | ||
| DCC Signal | 5Vp-p (TTL) | ||
| The lenght for HDMI cable | <= 30m (AWG26 standard HDMI cable) | ||
| HDMI Output | HDCP Compliance | Yes | |
| HDMI graphic resolution support | 640x480 @ 60Hz, 800x600 @ 60Hz 1024x768 @ 60Hz, 1280x720 @ 60Hz 1280x768 @ 60Hz, 1280x960 @ 60Hz 1280x1024 @ 60Hz, 1360x768 @ 60Hz 1366x768 @ 60Hz, 1400x1050 @ 60Hz 1440x900 @ 60Hz, 1600x900 @ 60Hz 1680x1050 @ 60Hz, 1920x1080 @ 60Hz | ||
| HDMI Resolution support | 480i @ 60Hz, 480p @ 60Hz 576i @ 60Hz, 576p @ 50Hz 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz 1080p @ 50 / 60Hz, 1080p @ 24Hz 3D 720p @ 50 / 60Hz 3D, 4K X2K | ||
| Color format support | 24-bits / Deep Color 30 bits / Deep color 36-bits | ||
| Max Data rate | 10.2Gbps | ||
| TMDS signal | 0.5-1.5Vp-p (TMDS) | ||
| DCC Signal | 5Vp-p (TTL) | ||
| The lenght for HDMI cable | <= 25m (AWG26 standard HDMI cable) | ||
| Protection Type | ESD protection | 1a Socketed discharge Level 3 | |
| Operating Environment | Operation Temperature | -10-55 ° C | |
| Storage Temperature | -20-70 ° C | ||
| Relative Humidity (non-condensing) | 0-95% | ||
| Product | Dimension (LxWxH) | 156mmx79mmx17mm | |
| Material | Aluminum alloy | ||
| Color | Black | ||
| Weight | 205g | ||
| Reliability | (MTBF) | > 30000 hours | |
