NKB5200 - Touchscreen keyboard with Android system for controlling and programming Dahua PTZ series high speed cameras, Standalone DVR, network video server and central management platform. Equipped with 10.1" touch screen LCD display , 32-key keyboard, 8x RS485, 3xUSB, 4D Joystick, 4xHDMI, RJ-45, 1x 3.5mm jack audio input, alarm , H.265/H.264 decoding. Dahua
FIND INSTALLER
TOUCHSCREEN KEYBOARD FOR RS485 IP PTZ CAMERAS CONTROL - DAHUA

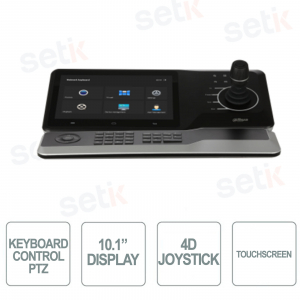

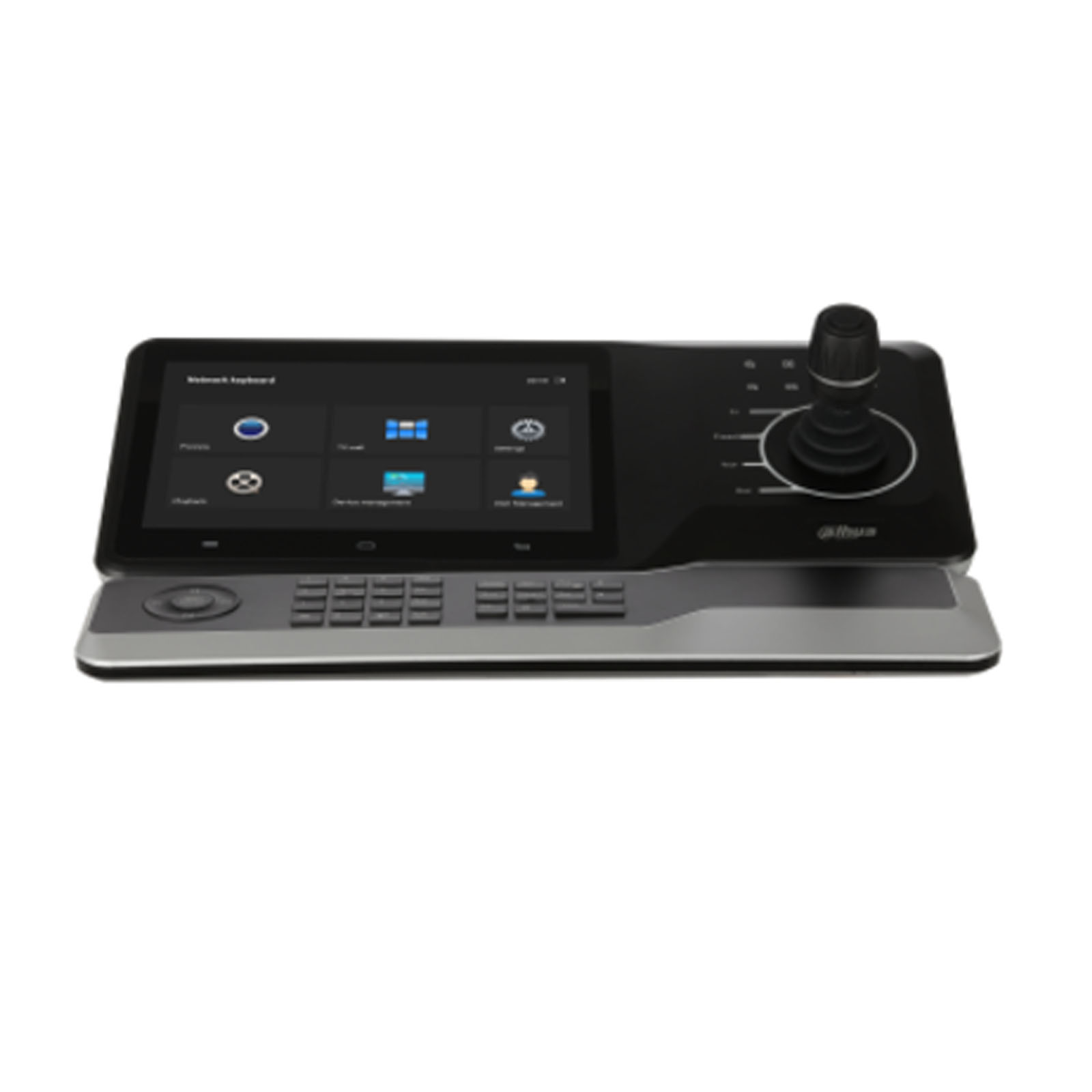

Dahua NKB5200 Keyboard
Useful for controlling and programming Dahua PTZ series high speed cameras, Standalone DVR, network video server and central management platform. Equipped with 10.1" touch screen LCD display, 32-key keyboard, 8x RS485, 3xUSB, 4D Joystick, 4xHDMI, RJ-45, 1x 3.5mm jack audio input, alarm, H.265/H.264 decoding - Host dimensions: 425mmx194mmx59mm
Product details
- IP Network Control Keyboard - Dahua
- Dahua Speed Dome Management and Control
- Network Video Server
- RS485, USB and network
- 4D joystick for controlling PTZ functions
- Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
- Host Dimensions: 425mmx194mmx59mm (W×D×H) (excluding joystick)
Technical data sheet
| Model | NKB5200 |
| System | |
| Main processor | Embedded Processor |
| Operation System | ANDROID 7.1 |
| Display | |
| Video Output | 1-ch VGA or 1-ch HDMI(extension decoding display 720P resolution) |
| Stream Type | H.265, H.264 |
| Decoding Capability | 1CH@4K(30fps)/4CH@1080P(30fps)/9CH@720P(30fps) |
| Joystick | 4D joystick |
| Split-Display | 1/4/9 splits,MxN splits |
| Screen | 10.1" TFT LCD touch screen (1280*800) |
| Sound & Alarm | |
| Audio Input/Output | 1 × volume button, 1 × mute button and touchscreen control |
| Loudspeaker | 1 loudspeaker to play audio |
| Alarm Input | 1-ch 3.5mm |
| Alarm Out | 1-ch 3.5mm |
| Speaker | 1 for audio play |
| General | |
| Network Interface | 1×RJ-45 port (10/100/1000M), WLAN |
| USB Interface | 1 USB3.0, 2 USB2.0 |
| RS485 | 1 for ptz control support PELCO |
| Maximum number of users | 32 (including "admin") |
| Max Number of PTZ (IPC) That Can Be Added over Network (Each User) | 10000 |
| Access Protocol | Dahua Private Protocol |
| Wifi | |
| Wireless frequency range | 2.4Ghz 5Ghz |
| Wireless transmission rate | 150Mbps |
| Environmental | |
| Power Supply | 12VAC 4A max adapter,POE |
| Power Consumption | < 48W |
| Working Temperature | -10°C ~+55°C |
| Working Humidity | 10%~95% |
| Atmospheric pressure | 86kpa~106kpa |

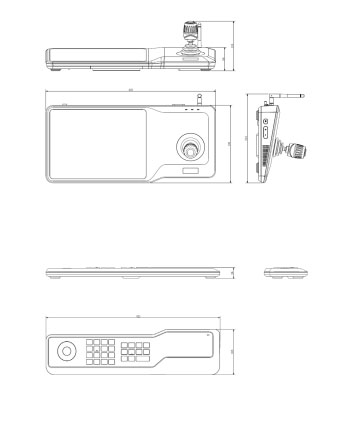

| Dimensions | Host: 425mmx194mmx59mm (W×D×H) (exclude joystick) Mini Keypad: 421mmx105mmx26mm (W×D×H) |
| Gross weight | 3.85kg(NKB5200 exclude package) 4.22kg(NKB5200-F exclude package) |
| Net weight | 1.90kg(NKB5200 exclude package) 2.36kg(NKB5200-F exclude package) |
Further details
Download
Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
