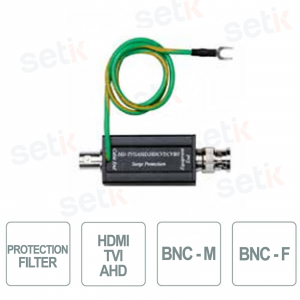

VIDEO SIGNAL PROTECTION FILTER - HDCVI/TVI/AHD

Prodotto Dahua
SP009 HDCVI/TVI/AHD video signal protection filter.

Product details

SP009
  • HDCVI/TVI/AHD Video Signal Protection Filter - Dahua

Technical data sheet

Model SP009
Technical specifications
Compliance IEC 61000-4-5
Response time Less than 1ns
ESD Protection 15KV(ESD), 8KV(Contact)
Lightning protection 2KA (8/20μs)/6KV (8/20μs)
Loss of insertion 0.8db @ 42MHz
Maximum Discharge Current 15 KA
Maximum Locking Tension 25V
Start-up overvoltage 6V
End of Equipment 1 x BNC Male
End of cable 1 x BNC Female
Temperature Operation: 0 to 55°C
Box: -20 to 85°C
Humidity: Up to 95%
Dimensions mm

79.3 x 25.4 x 25.4mm

Weight

75g
