VIDEO SIGNAL AMPLIFIER - BNC INPUT - HDCVI/CVBS/AHD/TVI

Prodotto Dahua

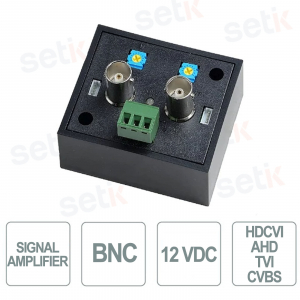

CA101HD Video signal amplifier with BNC input for HDCVI/CVBS/AHD/TVI signals

Product details

CA101HD
  • Video Signal Amplifier with BNC Input - Dahua
  • HDCVI/AHD/TVI/CVBS video formats

Technical data sheet

Model CA101HD
Technical specifications
Video input channel BNC x 1 (75Ω 1Vp-p)
Video output channel 5-PIN removable terminal
Video Formats HD-TVI/AHD/HDCVI
Switch Slide switch (3 levels) x1
Cable UTP CAT5e/CAT6
Transmission distance AHD / HDCVI: 800M@1080p, HD-TVI: 600M@1080p
Power supply DC12V 500mA
Electricity consumption 1150mA (Max)
Temperature Operation: 0 to 55°C
Box: -20 to 85°C
Humidity: Up to 95%
Dimensions mm

57.8 x 49.2 x 41.7

Weight g

70

Further details

CA101HD dimensions
