HDMI ACTIVE EXTENDER TRANSMITTERS FOR VIDEO SIGNAL EXTENSION - RANGE 600M - UTP CABLE

Prodotto Dahua

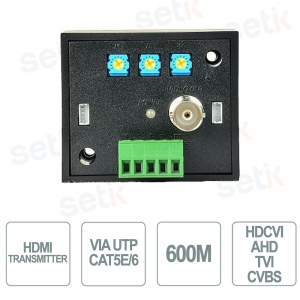

TTA111HDT HDMI Active Extender Transmitter over UTP Cable for HDCVI/AHD/TVI/CVBS Video Signal Range 600M 1080P / 250m 4K

Product details

  • HDMI Active Extender Transmitter - Dahua
  • Allows you to extend the transmission distance up to 600 meters on UTP cable
  • HDCVI/AHD/TVI/CVBS video formats

Technical data sheet

Model TTA111HDT
Technical specifications
Video input channel 5-PIN removable terminal
Video output channel BNC x 1 (75Ω 1Vp-p)
Video Formats HD-TVI, HD-CVI
Switch Slide switch (3 levels) x1
Cable UTP CAT5e/CAT6
Transmission distance Up to 1080P 300M
Power supply DC12V 1A
Electricity consumption 1150mA (Max)
Temperature Operation: 0 to 55°C
Box: -20 to 85°C
Humidity: Up to 95%
Dimensions mm

57.8 x 49.2 x 41.7

Weight g

70

Further details

TTA111HDT dimensions
