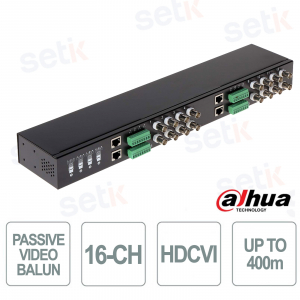

PASSIVE HDCVI BALUN 16CH - DAHUA
16 channel passive HDCVI Balun uses 4 wires simultaneously to transmit 16 channel video signal with BNC coaxial interface and pluggable screw terminal connections. Real-time transmission of HDCVI/AHD/TVI/CVBS video signal.
HD-CVI Transmission Distance: 250mt at 1080p / 400mt at 720p / 200m at 4MP
HD-CVI Transmission Distance: 250mt at 1080p / 400mt at 720p / 200m at 4MP
Product details
- Dahua 16 Channel Video Balun
- Passive single-channel transceivers (no power supply required)
- Supports HDCVI/AHD/TVI/CVBS signals
- HD-CVI Transmission Distance / 250mt at 1080p / 400mt at 720p / 200m at 4MP
- BCN coaxial video connection
- Size: 430mm*100mm*44.5mm
- Product excluded from warranty
Technical data sheet
| Model | PFM809-4MP | ||
| Properties | |||
| Transmission Signal | 16 channels | ||
| Network Cable Type | UTP CAT5E/6 | ||
| Transmission Distance |
HDCVI |
||
| Video Transmission Properties And Port | |||
| Coaxial Video Connector | BNC | ||
| Twisted Pair Video Connector | Push terminal | ||
| Compatible Format | Spring loaded | ||
| Resolution | 720P/1080P/4MP | ||
| Anti-interference | ＞60db | ||
| Protection | |||
| ESD |
1a contact discharge electricity level 3 |
||
| Coaxial Cable Connector |
2KV(common-code) For: IEC1000-4-5 |
||
| UTP Cable Connector |
2KV(different-code), 4KV(common-code), For: IEC1000-4-5 |
||
| Impedance | |||
| BNC Male Impedance | 75 ohms | ||
| UTP Cable Impedance | 100 ohms | ||
| Physical Properties | |||
| Dimensions(L*W*H) | 430mm*100mm*44.5mm(1U) (16.93”x3.94”x1.75”) | ||
| Shell | SECC | ||
| Color | Black | ||
| Weight | 1.25kg(2.76lb) | ||
| Stability | |||
| MTBF | ＞10000h | ||
| Environmental | |||
| Operating Temperature | -10℃~+55℃(14℉~131℉) | ||
| Storage Temperature | -20℃~+70℃(-4℉~158℉) | ||
| Humidity | 0~95%(non-condensing) | ||
| Certification | |||
| Certification | CE, FCC | ||
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
