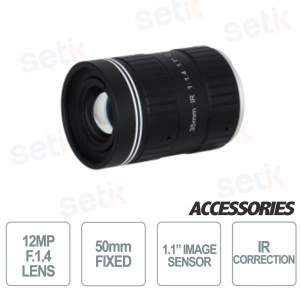

CAMERA LENS - 50mm FIXED LENS - 12MPX - IR CORRECTION - DAHUA - PFL50-L12M-AIR
Surveillance Camera Lens - Dahua - PFL50-L12M-AIR
12Megapixel - 50mm fixed lens - 1/1" sensor - C mount
IR Correction - Motorized Zoom - Motorized Focus - Quality Product - Made of Metal - Black Color - Ideal for use in video surveillance systems operating in low-light environments, for face capture and for high-definition image acquisition at night - P-Iris Control - Weight: 0.335 kg ± 0.005 kg - Product Dimensions: Ф56 mm × 80.2 mm
Product details
- Lens - Dahua - PFL35-L12M-AIR
- 1/1" sensor
- 12Megapixels
- Total Focal Length: 50mm
- Aperture: F1.4 ± 10%
- Ideal for face capture in low light conditions
- C attack
- IR correction, ideal for high definition shots in night environments
- Material: metal
- Color: Black
- Supported operating temperature: –30°C to +70°C
- Product net weight: 0.335kg ± 0.005kg
- Product size: Ф56mm × 80.2mm
Technical data sheet
|
Model |
PFL50-L12M-AIR |
|
General |
|
|
Image Sensor Size |
1.1" |
|
Focal Length |
50mm |
|
Pixel |
12MP |
|
Max. Openings |
F1.4 ± 10% |
|
IR Correction |
Yes |
|
CRA |
10.3° |
|
Total Optical Length |
84 mm ± 0.5 mm (3.31" ± 0.02") (in air) |
|
Flange Back Focal Length |
17.53 mm ± 0.2 mm (0.69" ± 0.01") (in air) |
|
Mechanical Back Focal Length. |
9.87 mm ± 0.2 mm (0.39" ± 0.01") (in air) |
|
Field of View |
20.9° × 17.2° × 11.6° (@17.56 × 14.47 × 9.94 mm) |
|
Distortion |
–1.3% |
|
Minimum Object Distance (MOD) |
1 m (3.28 ft) |
|
Control Mode |
|
|
Zoom |
Fixed |
|
Focus Control |
Manual |
|
Iris Control |
Manual |
|
Port |
|
|
Port Type |
C mount |
|
Structure |
|
|
Product Dimensions |
Ф56 mm × 80.2 mm (Ф2.2" × 3.16") |
|
Appearance Color |
Black |
|
Casing |
Metal |
|
Net Weight |
0.335 kg ± 0.005 kg (0.74 lb ± 0.01 lb) |
|
Gross Weight |
0.4 kg ± 0.010 kg (0.88 lb ± 0.02 lb) |
|
Packaging Method |
30 pieces in one carton (4.88" × 3.23" × 3.5") (L × W × H) |
|
Packaging Dimensions |
Package: 124mm × 82mm × 89mm (4.88" × 3.23" × 3.5") (L × W × H) |
|
Environment |
|
|
Operating Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
|
Operating Humidity |
≤ 95% (RH) |
|
Storage Temperature |
–30 °C to +70 °C (–22 °F to +158 °F) |
|
Storage Humidity |
≤ 95% (RH) |
Further details
Download
Download Brochure English
