HIKVISION | HV1140P-8MPIRA |
Ideal lens for video surveillance cameras - 11-40mm varifocal lens - 8MP resolution - 1/1.8" sensor - P-Iris - Manual zoom and focus - F1.4-C - CS mount - MOD 0.1m - 8MP IR constant aperture - High quality product.
FIND INSTALLER

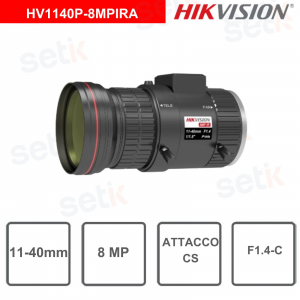

HV1140P-8MPIRA | HIKVISION | CCTV CAMERA LENS - VARIFOCAL 11-40MM - 8MP RESOLUTION
11-40mm Varifocal Lens - 8MP - HIKVISION - HV1140P-8MPIRA
11-40mm varifocal lens - 1/1.8" sensor, 9mm diameter - 8MP resolution - CS mount - F1.4-C - P-Iris - Focus: manual - Zoom: manual - MOD 0.1m - Constant IR aperture 8MP - Product for professional solutions in the video surveillance sector.
- Lens - For CCTV Surveillance Cameras - HIKVISION - HV1140P-8MPIRA
- 11-40mm varifocal lens
- 8MP resolution
- 1/1.8" sensor with 9mm diameter
- MOD: 0.1m
- F1.4-C
- CS Attack
- Focus: Manual
- Zoom: manual
- P-Iris
- 8MP IR Constant Aperture
- Dimensions: Φ48*92.9mm
- Functional temperature: -20~60?
- Net weight of lens: 177g
Technical data sheet
| Parameters | Specification |
|---|---|
| Weight | 177g |
| Dimensions | Φ48*92.9mm |
| Specification | Vari-focal P-Iris Constant Aperture 8MP IR |
| Focal length | 11-40mm |
| Mount | CS Mount |
| F number | F1.4-C |
| Flange Back Length | 12.5mm |
| Max. Image format | Φ9mm (1/1.8") |
| MOD | 0.1m |
| Operating Temperature | -20~60? |
| Control - Iris | P-iris |
| Control - Focus | Manual |
| Control - Zoom | Manual |
| Field of View - Diagonal | 1/1.8": 45.2°?13.8° 1/2": 41.7°?12.8° |
| Field of View - Horizontal | 1/1.8": 36.7°?11.5° 1/2": 35.8°?11.2° |
| Field of View - Vertical | 1/1.8": 23.9°?7.6° 1/2": 19.6°?6.3° |
