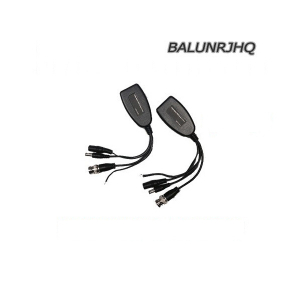

Pair of Passive Video Baluns RJ45 Video+Power+Data RS485

Pair of Passive Video Baluns RJ45 Video+Power+Data RS485
SUPER-SALES -75%

Pair of Passive Video Baluns, high quality. Transmits Video + Power + Data. Connectors present: Video (BNC), Data (RS485), Power (1x Male, 1x Female). Lighting Protection (lightning protection), Interference Rejection, Power Not Required, Maximum Current 1.5A. Also compatible with AHD and HDCVI systems. Very reliable product. BALUNRJHQ

Reference: BALUNRJHQ

Brand: Setik

EAN: 8056450374903

FIND INSTALLER

€10.68

€42.70 -75%
taxes included
Tax included
  Available
 Available
discover the available quantity

OUT ALL×


GET OUT! Take advantage of our unmissable outlet offers


Passive Video Balun RJ45 Video + Power + Data RS485 SETIK

Made by Setik Passive RJ45 Video Baluns - High Quality
On UTP cable they transmit Video + Power + Data
Lightning Protection - No Power Required - Product Without Warranty
Also compatible with AHD and HDCVI systems


Product code

Maximum Resolution

Distance

Connection type

Signal type

Other

5XBALUNHD

4K

450mt

2 wires

Video

5 Pieces

BALUNOHQ

8MP

450mt

2 wires

Video

Pluggable

BALUNRJ*

5MP

200m

UTP

Video+Audio+Power

BALUNACTHD

5MP

800m

2 wires

Video

Active

BALUNRJHQ*

5MP

300m

UTP

video+audio+power


*it is capable of carrying audio and power separately

Product details

Coppia di Trasmettitori Video Balun Passivi - Video+Alimentazione+Data RS485
  • Video Balun RJ45 - SETIK
  • Type: Passives
  • On UTP cable carries Video, Power and Data signals
  • Connectors present: Video (BNC), Power (1x Female; 1x Male), Data (RS485)
  • Supported transmission distances:
    Video: Color 300mt / Black&White 500mt
    Power supply: 200mt
    Data: 300Mt
  • Weight: 70 Grams
  • One pack contains: 2 pieces
  • Lightning protection (IKV 10/700us)
  • No power required
    • Compatible with AHD 1080P and 5 Megapixel cameras!
    • Compatible with 1080P HDCVI cameras
  • Maximum current: 1.5A
  • BNC Male Connector with RJ45 Jack
  • Product excluded from warranty
  • Compliant with IEC 61000-4-2:1995 standard
  • Interference rejection
  • Product not waterproof. Do not use outdoors

Technical data sheet

Model BALUNRJHQ
System
Typology Passive
Video Input / Output BNC
Video Signal 1V pp, 75Ohms
Power No Power Required
Weight 70 gr
Transmission Distance Video: Color 300m / B&W 500m
Power: 200m
Date: 300mt
Cable UTP / Twisted Pair CAT5 (24AWG)
Data Wire 2 Wire Bare Lead
Lighting Protection IKV (10/700us)
Max Current 1.5A
Quantity 2pcs

Further details

NO_WARRANTY Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.
