DS-1006KI Hikvision USB Keyboard, Control keyboard compatible with various devices such as PTZ cameras, multifunctional video centers (MVCs) and matrix access gateways (MAGs) to enable quick transition to video wall and PTZ control. Supports access to DVR and NVR for menu and PTZ control. Joystick with 4-axis control, 128 × 64 dot matrix screen, USB 2.0 RS-232(x1) RS-485(x1) RS-422 (x1) USB 2.0 Compatible with Linux systems.



Reference: DS-1006KI

Brand: Hikvision

FIND INSTALLER

€485.32

€746.64 -35%
taxes included
Tax included
 Available in 5 days
 starting

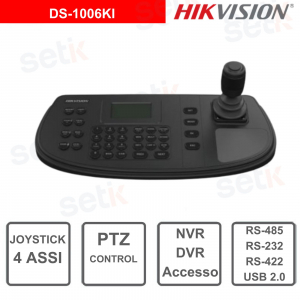

DS-1006KI | HIKVISION USB PTZ CONTROL KEYBOARD


CONTROL KEYBOARD WITH 4 AXIS JOYSTICK

The Hikvision DS-1006KI control keyboard represents a new generation accessory designed to offer advanced control and efficient management of video surveillance systems. This device is compatible with a wide range of equipment, including speed domes, multifunctional video centers (MVCs) and matrix access gateways (MAGs), allowing for quick transition to video wall and PTZ control. The keyboard supports access to DVR and NVR for controlling the menu and PTZ functions, offering an intuitive and functional interface. Featuring a 4-axis joystick, a 128x64 dot matrix screen, ergonomic buttons and a simple design, the DS-1006KI keyboard is ideal for monitoring centers in industries such as buildings and transportation. Its key features include control PTZ. Furthermore, it has a USB interface for system updates and import/export of configuration files. With two levels of user permission, this keyboard offers complete, customized control for your security needs.

USB keyboard
PTZ CCTV DVR NVR usb control keyboard ​

  • 128 x 64 dot matrix screen
  • 4-axis joystick
  • Accessible to DVR/NVR (with KB ports) and speed dome via serial ports
  • Accessible to multifunctional video centers (MVC) or matrix access gateway (MAG) for video wall control
  • Supports PTZ control, setting and calling presets and patrols
  • System update and import/export of configuration files via USB stick
  • Two levels of user permission
  • Linux system compatibility
  • Dimensions: 348.2mm x 169mm x 123.2mm
  • Weight: 1.6kg
  • Power supply: 12 VDC
  • Consumption: ≤ 4.7W
  • External interfaces: 1 x RS-232, 1 x RS-485, 1 x RS-422, 1 x USB 2.0


Documentation: Brochures

Data sheet

Device Parameters:

  • Display: 128 × 64 dot matrix screen
  • Control Method: Serial control
  • Power Supply: 12 VDC
  • Consumption: ≤ 4.7 W
  • Dimension: 348.2 mm × 169 mm × 123.2 mm (13.7 inch × 6.65 inch × 4.85 inch) (L × W × H)
  • Weight: 1.6 kg (3.53 lb.)
  • Compatible System: Linux system

Environmental Parameter:

  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%

External Interface:

  • Network: Not supported
  • Wi-Fi: Not supported
  • Serial Port: RS-232 × 1, RS-485 × 1, RS-422 × 1
  • Joystick: 4-axis single-button joystick
  • USB Interface: USB 2.0×1
