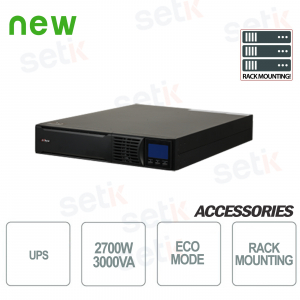

Uninterruptible power supply UPS 3000VA 2700W

Uninterruptible power supply UPS 3000VA 2700W
QUESTIONS ABOUT THE PRODUCT

 
-32%

New UPS UPS series RACK series! 3000VA / 2700VA capacity, pure sine wave . ECO mode, Conversion mode , 6-battery operation, 12V / 9AH. PFM351R-2700



Reference: PFM351R-2700

Brand: Setik

FIND INSTALLER

€1,174.58

€1,727.32 -32%
taxes included
Tax included
 Available in 5 days
 starting

Prodotto Dahua UPS CONTINUITY GROUP UPS 3000VA / 2700W
Uninterruptible Power Supply - Rack Series
Power 3000 VA / 2700 W - Single phase - LCD display
Conversion mode, Advanced technology for digital control
Rackable Version - 24 Months Italian Guarantee

Product details

CONTINUITY GROUPS


Gruppo di continuità UPS potenza 2000VA / 1800W Display LCD Serie Rack Online



  • Uninterruptible Power Supply (UPS) -
  • Rack mount!
  • Pure sine wave
  • Capacity: 3000 VA / 2700 W
  • Display
  • Batteries: 12V / 9Ah (6x)
  • Charging time: 4 hours
  • Conversion technology
  • Wide voltage range: 180 V ~ 300 V AC
  • Alarm: Line Fault - Low Battery - Overload - Fault tolerance
  • ECHO
  • Dimension: 630 x 438 x 88 mm
  • 24 month Italian warranty, immediate replacement
Prodotto senza garanzia

ITALIAN 24 MONTH WARRANTY IMMEDIATE REPLACEMENT:
This warranty covers failures on the UPS and not on the battery.

The components that by their nature or for normal wear, wear or decay, need periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.



Data sheet

Model PFM351R-2700
INPUT
Rated Voltage 220Vac ~ 240Vac
Voltage Range 180 ~ 300VAC @ 100% load
120 ~ 300VAC @ 50% load
Rated Frequency Range 57 ~ 63HZ
Power Factor 0.9
Output
Voltage 200/208/220/230/240 VAC
AC Voltage Regulation (Batt. Mode) ± 1%
Frequency Range (Batt. Mode) 50Hz or 60Hz ± 0.5%
Transfer Time 0 ms
Waveform (Batt. Mode) Pure Sinewave
Capacity 3000VA / 2700W
Battery
Battery Type & Number 12 V / 9 Ah x 6
Typical Recharge Time 4 hours recover to 90% capacity
Max.Recharge Current 1 A
Recharge Voltage 82.1VDC ± 1%
indicators
LCD Load level, battery level, AC mode, battery mode, bypass mode, and fault indicators
Alarm
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
Protection
Full Protection Over temperature, overload, discharge, and overcharge protection
Environmental
Operating Temperature 0 ℃ ~ + 40 ℃ (+ 32 ℉ ~ + 104 ℉
Operating Humidity 0 ~ 95% RH (non-condensing)
Altitude Range <1000m 3280="" 84ft="" td="">
Construction
Color Black
Noise Level <50db td="">
Dimensions 630mmx438mmx88mm (24.8 "x17.24" x3.46 ")
Weight 29.3kg (64.6lb)

Further details

Perché usare un gruppo di continuità?


Why is it important to use a UPS?

Click here to read the dedicated article

Download

Download the English Depliant (Soon available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
