New series of UPS SUPERIOR PRO UPS RACK series! 1000VA / 900W capacity, pure sine wave, equipped with LCD display with device status indications. Double Conversion On-Line Technology, Advanced DSP Control , 3-battery operation, 12Vdc / 7AH. UPSL1000LCD-RTPLUS
FIND INSTALLER
€561.20
€1,122.40 -50%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

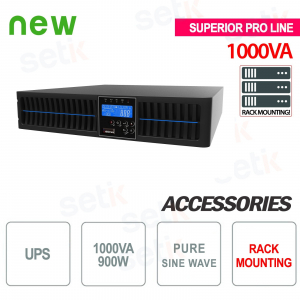

UPS 1000VA / 900W UPS - SUPERIOR PRO RACK SERIES
Power 1000 VA / 900 W - Single phase - LCD display
Online Double Conversion Technology, Advanced Technology for digital control
Rackable version - 24 months Italian warranty - immediate replacement
Product details
NEW UPS GROUPS - SUPERIOR PRO RACK LINE
- Uninterruptible Power Supply (UPS) - Superior Pro Line
- Rack Mount!
- Pure Sine Wave
- Capacity: 1000 VA / 900 W
- LCD display
- Batteries: 12V / 7Ah (3x)
- Charging time: 4 hours
- Double Conversion On-Line Technology
- Advanced technology for digital control
- Wide voltage range: 110-300Vac
- Active harmonic current control
- Multi-Mode Operation
- Simple upgrade program
- DC Start function
- Alarm: Line Fault - Low Battery - Overload - Fault Tolerance
- RS232, EPO
- Dimension: 440x88x405 mm
- 24-month Italian warranty, immediate replacement
 | ITALIAN 24 MONTH WARRANTY | IMMEDIATE REPLACEMENT: Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
Data sheet
| Model | UPSL1000LCD-RTPLUS |
| INPUT | |
| Phase | Single + G |
| Voltage Range ** | 110 ~ 300Vac |
| Frequency Range | 45-65Hz (Auto sensing) |
| Power Factor | ≧ 0.99 @ 100% linear load |
| OUTPUT | |
| Capacity | 1000VA / 900W |
| Output Voltage | 220/230/240 Vac |
| Output Power Factor | 0.9 |
| Output Voltage Distortion | <3% @ 100% Linear load <7% @ 100% non-linear load |
| Output Voltage Regulation | ± 1% |
| Frequency Range | ± 1Hz or ± 3Hz (Selectable) |
| Crest Factor | 3: 1 |
| Output wave form | Pure Sine Wave |
| EFFICIENCY | |
| Line Mode | Up to 92% |
| High Efficiency Mode | Upt to 97% |
| BATTERY | |
| Capacity | 12Vdc / 7AH |
| Battery number | 3 |
| Battery Voltage | 36 |
| Recharge Time (to 90%) | 4 hours |
| DISPLAY | |
| LCD Measurement | Volatge / Frequency / Load level / Battery level / Output current / Estimated autonomy |
| Slef-diagnostics | Upon Power-on, Front Panel Setting & Software Control, 24 hours routine check |
| ALARM | |
| Audible or Visual | Line Failure / Battery Low / Transfer to Bypass / System Fault |
| PROTECTION | |
| Full protection | Overload, Over temperature, Short circuit, Discharge, overcharge |
| FUNCTION | |
| Multi-Mode | Normal / ECO / CVCF |
| DC Start | Yes |
| Programmable outlet | Option |
| PHYSICAL | |
| Dimensions | 440 x 88 x 405 |
| (WxHxD, mm) | 17.3x3.5x16.0 |
| Weights (kgs) | 11.7 / 25.8 |
| ENVIRONMENT | |
| Operation Temperature | 0 ~ 40 ° C / 32 ~ 104 ° F |
| Operation Humidity | 20% ~ 95% RH (Without condensing) |
| Altitude | 1000m / 3280ft without Derating |
| Noise Level | ≦ 50dBA @ 1 meter front |
| INTERFACE | |
| Standard | RS-232, EPO |
| Option | USB, RS-485 (Modbus), Dry Contact Relay, SNMP / WEB Card |
| Compatible Platforms | Microsoft Windows series, Linux, Mac, etc. |
| STANDARDS AND CERTIFICATIONS | |
| Safety | EN62040-1 |
| EMC | EN62040-2 (C2) |
| Markings | THERE IS |
