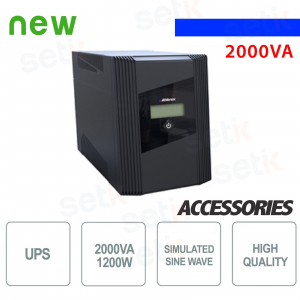

Uninterruptible Power Supply UPS 2200VA - 1200W - With LCD Display ( AC, AVR, Battery Modes. Battery Level, Charge Level, Input and Output Voltage, Fault, Weak Battery). Complete protection from Overload, Short Circuit, Discharge. DC Start and Plug-in Charging function. Altitude up to 1000m without depowering. USB port, RS-232. Charging time 4~6 hours, Safety. UPS2200LCD
FIND INSTALLER
€208.62
€417.24 -50%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
UPS 2200 VA / 1200 W - LCD DISPLAY
Power 2200 VA / 1200 W - Single phase - LCD display
Complete protection against Overload, Short Circuit, Discharge
Not equipped with Shuko/Cables
Product details
- Uninterruptible Power Supply (UPS)
- Power: 2200VA / 1200W
- Model: UPS2200LCD
- Not equipped with Shuko/Cables
- LCD display
- Battery: 12V/9Ah x2
- Charging time: 4-6 Hours
- Complete Protection from: Overload, Short Circuit, Discharge
- LCD Display Functions: AC, AVR, Battery Mode. Battery Level, Charge Level, Input and Output Voltage, Fault, Weak Battery
- Audio or Visual Alarm: Battery Status, Low Battery, Overload, System Anomaly
- Functions: DC Start and Plug-in Charging
- Dimensions: 148x198x315mm
- Weight: 11.8kg
- Altitude: up to 1000m without loss of power
- 24 month Italian guarantee, immediate replacement
 |
24 MONTH ITALIAN WARRANTY | IMMEDIATE REPLACEMENT: Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
Data sheet
| Model | UPS2200LCD |
| INPUT | |
| Voltage Range** | 160Vac~290Vac |
| Frequency Range | 45~65Hz(Auto sensing) |
| OUTPUT | |
| Capacity | 1200W |
| Output Voltage (Battery mode) | 220/230/240Vac ±10% |
| Frequency Range (Battery mode) | 50/60Hz ±1Hz |
| Transfer Time | 2~6ms(typical) |
| Waveform output | Simulated SineWave |
| BATTERY | |
| Type & Number | 12V/9Ah x 2 |
| Recharge Time (to 90%) | 4~6 hours |
| DISPLAY | |
| LCD (Option) | AC mode, AVR mode, Battery mode, Battery level, Load level, Input voltage, Output voltage, Fault, and Battery weak |
| LED (Standard) | 6 LEDs: Line/Battery mode, Fault, Load/Battery level |
| ALARM | |
| Audible or Visual | Battery mode / Battery low / Overload / System Fault |
| PROTECTION | |
| Full Protection | Overload, Short circuit, Discharge, overcharge and optional RJ-11/RJ-45 surge protection |
| FUNCTION | |
| DC Start |
|
| Plug-in Charging | Yes |
| PHYSICAL | |
| Dimension (WxHxD, mm) | 148 x 198 x 315 |
| Net Weight (kgs) | 11.8 |
| ENVIRONMENT | |
| Operation Temperatures | 0- 40°C |
| Operation Humidity | 20%-95 %RH (Without condensing) |
| Altitude | 1000m without Derating |
| Noise Level | ≦40dB |
| INTERFACE | |
| Interface (Option) | USB, RS-232 |
| Compatible Platforms | Microsoft Windows series, Linux, Mac, etc. |
| STANDARDS AND CERTIFICATION | |
| Safety | EN62040-1 |
| EMC | EN62040-2, EN61000-3-2, EN61000-3-3 |
| Marks | THERE IS |
