Uninterruptible Power Supply UPS 1600VA - 900W - With LED Display ( AC, AVR, Battery Mode. Battery Level, Charge Level, Input and Output Voltage, Fault, Weak Battery). Complete protection from Overload, Short Circuit, Discharge. DC Start and Plug-in Charging function. Altitude up to 1000m without depowering. USB port, RS-232. Charging time 4~6 hours, Safety. UPS1600LED
FIND INSTALLER
€193.98
€387.96 -50%
discover the available quantity

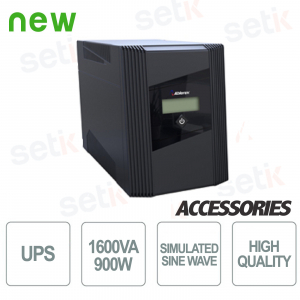

UPS 1600 VA / 900 W - LED DISPLAY
Power 1600 VA / 900 W - Single phase - LED display
Complete protection against Overload, Short Circuit, Discharge
Not equipped with shuko
Product details
- Uninterruptible Power Supply (UPS)
- Power: 1600VA/900W
- Model: UPS1600LED
- Without Shuko
- LED display
- Battery: 12V/7Ah x2
- Charging time: 4-6 Hours
- Complete Protection from: Overload, Short Circuit, Discharge
- LCD Display Functions: AC, AVR, Battery Mode. Battery Level, Charge Level, Input and Output Voltage, Fault, Weak Battery
- Audio or Visual Alarm: Battery Status, Low Battery, Overload, System Anomaly
- Functions: DC Start and Plug-in Charging
- Dimensions: 148x198x315mm
- Weight: 10.5kg
- Altitude: up to 1000m without loss of power
- 24 month Italian guarantee, immediate replacement
 |
24 MONTH ITALIAN WARRANTY | IMMEDIATE REPLACEMENT: Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
Data sheet
| Model | UPS1600LED |
| INPUT | |
| Voltage Range** | 160Vac~290Vac |
| Frequency Range | 45~65Hz(Auto sensing) |
| OUTPUT | |
| Capacity | 900W |
| Output Voltage (Battery mode) | 220/230/240Vac ±10% |
| Frequency Range (Battery mode) | 50/60Hz ±1Hz |
| Transfer Time | 2~6ms(typical) |
| Waveform output | Simulated SineWave |
| BATTERY | |
| Type & Number | 12V/7Ah x 2 |
| Recharge Time (to 90%) | 4~6 hours |
| DISPLAY | |
| LCD (Option) | AC mode, AVR mode, Battery mode, Battery level, Load level, Input voltage, Output voltage, Fault, and Battery weak |
| LED (Standard) | 6 LEDs: Line/Battery mode, Fault, Load/Battery level |
| ALARM | |
| Audible or Visual | Battery mode / Battery low / Overload / System Fault |
| PROTECTION | |
| Full Protection | Overload, Short circuit, Discharge, overcharge and optional RJ-11/RJ-45 surge protection |
| FUNCTION | |
| DC Start |
|
| Plug-in Charging | Yes |
| PHYSICAL | |
| Dimension (WxHxD, mm) | 148 x 198 x 315 |
| Net Weight (kgs) | 10.5 |
| ENVIRONMENT | |
| Operation Temperature | 0- 40°C |
| Operation Humidity | 20%-95 %RH (Without condensing) |
| Altitude | 1000m without Derating |
| Noise Level | ≦40dB |
| INTERFACE | |
| Interface (Option) | USB, RS-232 |
| Compatible Platforms | Microsoft Windows series, Linux, Mac, etc. |
| STANDARDS AND CERTIFICATION | |
| Safety | EN62040-1 |
| EMC | EN62040-2, EN61000-3-2, EN61000-3-3 |
| Marks | THERE IS |
