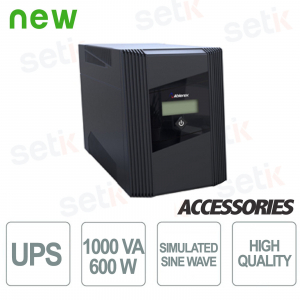

UPS 1000VA - 600W Uninterruptible Power Supply - With LED Display ( AC Mode, AVR, Battery. Battery Level, Charge Level, Input and Output Voltage, Fault, Low Battery). Full Protection from Overload, Short Circuit, Discharge. DC Start and Plug-in Charging Function. Altitude up to 1000m without De-rating. USB Port, RS-232. Charging Time 4~6 Hours, Safety. UPS1000LCD
FIND INSTALLER
€171.41
€342.82 -50%
discover the available quantity
BLACK WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code BLACK-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 2/12/2024
Code NOT combinable with other actives
UPS 1000 VA / 600 W - LCD DISPLAY
Power 1000 VA / 600 W - Single phase - LCD display
Full protection against Overload, Short Circuit, Discharge
Without shuko
Product details
- Uninterruptible Power Supply (UPS)
- Power: 1000 VA / 600 W
- Model : UPS1000LCD
- Without Shuko
- LCD display
- Battery: 12V/7Ah x2
- Charging time: 4-6 Hours
- Full Protection from: Overload, Short Circuit, Discharge
- LCD Display Functions: AC Mode, AVR, Battery. Battery Level, Charge Level, Input and Output Voltage, Fault, Low Battery
- Audio or Visual Alarm: Battery Status, Low Battery, Overload, System Failure
- Functions: DC Start and Plug-in Loading
- Dimensions: 148x198x315mm
- Weight: 9 kg
- Altitude: up to 1000m without power loss
- 24 month Italian warranty immediate replacement
 |
24 MONTH ITALIAN WARRANTY | IMMEDIATE REPLACEMENT: Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
Technical data sheet
| Model | UPS1000LCD |
| INPUT | |
| Voltage Range** | 160Vac~290Vac |
| Frequency Range | 45~65Hz(Auto sensing) |
| OUTPUT | |
| Capacity | 600W |
| Output Voltage (Battery mode) | 220/230/240Vac ±10% |
| Frequency Range (Battery mode) | 50/60Hz ±1Hz |
| Transfer Time | 2~6ms(typical) |
| Output Waveform | Simulated Sine Wave |
| BATTERY | |
| Type & Number | 12V/7Ah x 2 |
| Recharge Time (to 90%) | 4~6 hours |
| DISPLAY | |
| LCD (Optional) | AC mode, AVR mode, Battery mode, Battery level, Load level, Input voltage, Output voltage, Fault, and Battery weak |
| LED (Standard) | 6 LEDs: Line/Battery mode, Fault, Load/Battery level |
| ALARM | |
| Audible or Visual | Battery mode / Battery low / Overload / System Fault |
| PROTECTION | |
| Full Protection | Overload, Short circuit, Discharge, overcharge and optional RJ-11/RJ-45 surge protection |
| FUNCTION | |
| DC Start | Yes |
| Plug-in Charging | Yes |
| PHYSICAL | |
| Dimensions (WxHxD, mm) | 148 x 198 x 315 |
| Net Weight (kg) | 9 |
| ENVIRONMENT | |
| Operation Temperature | 0- 40°C |
| Operation Humidity | 20%-95 %RH (Without condensing) |
| Altitude | 1000m without Derating |
| Noise Level | ≦ 40dB |
| INTERFACE | |
| Interface (Option) | USB, RS-232 |
| Compatible Platforms | Microsoft Windows series, Linux, Mac, etc. |
| STANDARDS AND CERTIFICATION | |
| Safety | EN62040-1 |
| EMC | EN62040-2, EN61000-3-2, EN61000-3-3 |
| Marks | THERE IS |
