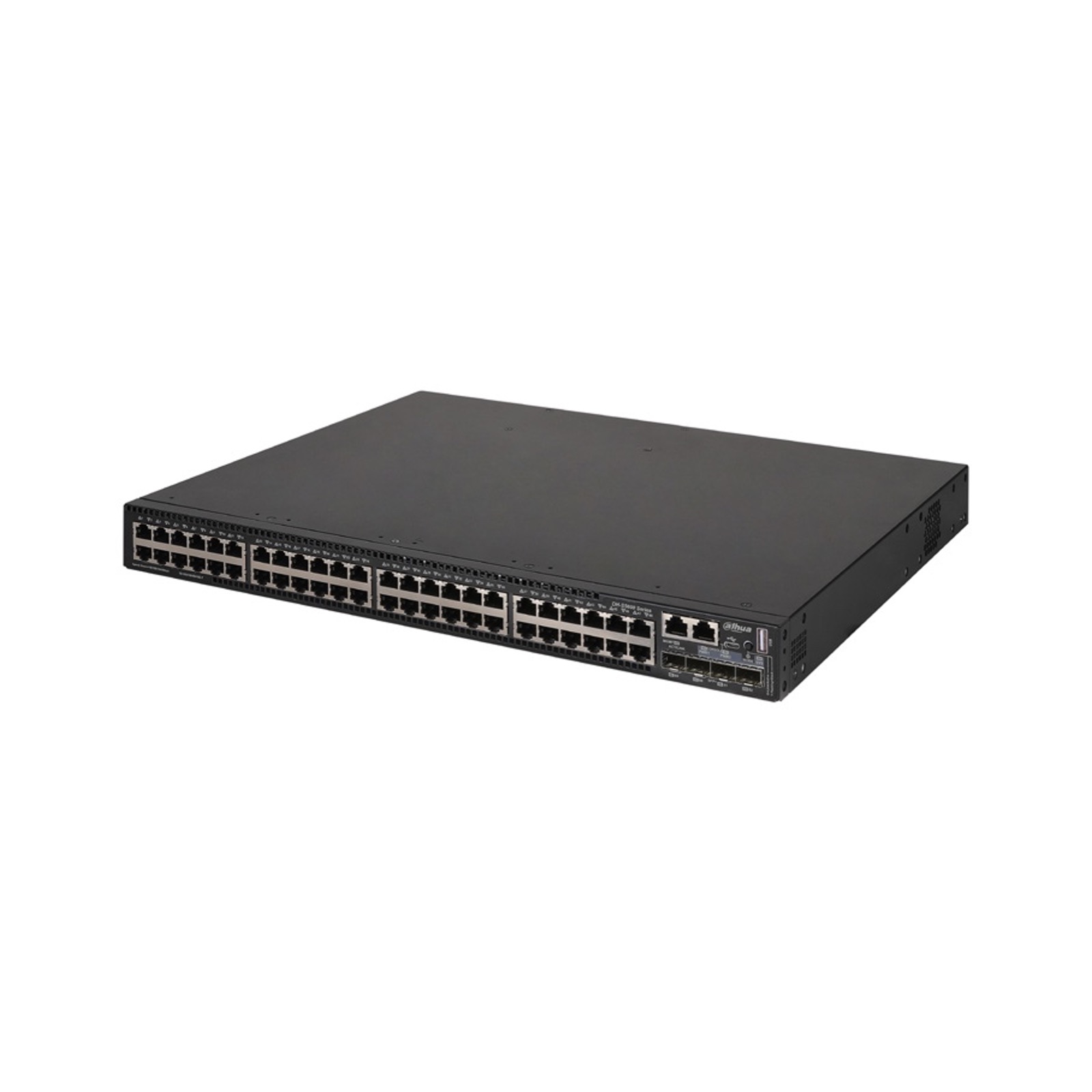

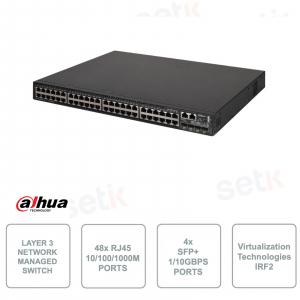

Managed network switch - 48 Gigabit Ethernet ports - 4 10Gbps ports - IRF2

Hardware Features

ethernet port

48 x 10/100/1000 Mbps ports

optical port

4 x 1/10 Gbps Base-X ports

console port

1 × RJ45 console port
1 × Micro-USB port

Power Supply

Two powers included

Supports dual power

100-240V AC 50-60Hz (Internal)

power consumption

Idling: 25W
Full load: 49W (Single Power)
Idling: 30W
Full load: 56W (Dual Power)

Operating Temperature

0°C to 45°C (32°F to 113°F)

Operating Temperature Operating Humidity

5%RH–95%RH

Storage Temperatures

–40°C to 70°C (–40°F to 158°F)

Performance

Layers

Layer 3

Managed

Yes

Switching Capacity

598Gbps

Packet Forwarding Rate

144Mpps

Packet Buffer Memory

24 Mbits

MAC TableSize

16K

VLAN Amount

4094 Entries

ARP Table

4K Entries

IPv4 Routing Table

12K Entries

QoS Queue

8 Entries

Jumbo Frames

10000 Bytes

ACL Table

6K Entries (IPV4)

1.5K Entries (IPV6)

Features

VLANs

Port-based VLANs

MAC-based VLANs

Protocol-based VLANs

IP subnet based VLANs

QinQ and flexible QinQ VLAN

Voice VLAN mapping

MVRP extension

Ring network protocol

STP/RSTP/MSTP/PVST

Smart Links

RRPP

G.8032 ERPS

DHCP

DHCP clients
DHCP snooping
DHCP snooping option82
DHCP relay
DHCP server

DHCP auto-config

Port Aggregation

GE/10GE port aggregation

Dynamic aggregation

Static aggregation

Cross-device aggregation

IP Routing

12K IPV4 routing entries

Static routing

RIP v1/v2 and RIPng

OSPF v1/v2/v3

BGP and BGP4+ for IPv6

IS-IS

VRRP/VRRPv3

Port Features

802.3x flow control (full duplex)

Storm suppression based on port bandwidth

percentage

Storm suppression based on PPS

Storm suppression based on BPS

IPV6

Neighbor Discovery (ND)
PMTU extension
IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP
IPv6 host management

Mirroring

Flow mirroring
N:4 port mirroring
Local port mirroring and remote port mirroring

Multicast

IGMP snooping v1/v2/v3 and MLD snooping v1/v2

PIM snooping

VLAN Multicast Proxy MLDs

IGMP v1/v2/v3 and MLD v1/v2

PIM-DM, PIM-SM, and PIM-SSM

MSDP and MSDP for IPv6

MBGP and MBGP for IPv6

IRF extension

IRF2
Distributed device management, distributed link aggregation, and distributed resilient routing
Stacking through standard Ethernet interfaces
Local device stacking and remote device stacking

Security

Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH2.0
Port isolation
802.1X authentication, centralized MAC authentication
Port security
IP Source Guard
HTTPs Hierarchical user management and password protection
802.1X authentication and centralized MAC address authentication
Guest VLANs
RADIUS authentication
SSH 2.0
Port isolation
Port security
Portal authentication
DHCP snooping
Dynamic ARP detection
BPDU guard and root guard
uRPF
IP/Port/MAC binding
Plaintext authentication and MD5 authentication for OSPF and RIPv2 packets
Public Key Infrastructure (PKI)

ACLs/QoS

Layer 2 to layer 4 packet filtering
Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP/UDP port number, and VLAN
Time range-based ACL
Bi-directional ACLs (inbound and outbound)
VLAN-based ACL issuing
Rate limit for receiving and transmitting packets (a minimum CIR of 8 Kbps)
Packet redirection
802.1p priority and DSCP priority
Committed Access Rate (CAR)
Eight queues per port (including the CPU port)
Flexible queue scheduling algorithms based on both port and queue, including SP, WRR, WFQ, SP+WRR, and WDRR

System Maintenance

Debugging information output
Ping, Tracert
Telnet remote maintenance
NQA
DLDP extension
Virtual cable test

Network Management

Command line interface (CLI) configuration
Telnet remote configuration
configuration via console port
SNMP v1/v2/v3
Web network management
System log
Power, fan, temperature alarm

General

Thunderproof

Common mode: 2kV
Differential mode: 1kV

Net Weight

8.2kg (3.72lbs)

Gross Weight

8.5kg (3.86lbs)

Product Dimensions

440mm × 360mm × 43.6mm (17.32" × 14.17" × 1.72")

Packaging Dimensions

580mm × 562mm × 125mm (22.83" × 22.12" × 4.92")
