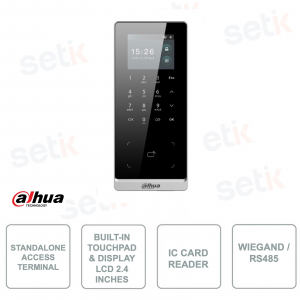

Autonomous terminal for access control - IC Card and Password reader - 2.4 inch LCD display

Autonomous terminal for access control - IC Card and Password reader - 2.4 inch LCD display
-57%

Dahua Access Control: Autonomous terminal - Authentication with IC Card, Password and remote control - 2.4 inch LCD Display and touchpad - Supports Wiegand and RS485 - WIFI - Alarm - Bell - Exit Button - Control for 1 door - Lock Control x1 - RS232 - USB - RJ45 LAN 100Mbps - Wall installation bracket included - IP65 protection (requires use of silicone sealant).



Reference: ASI2201H-W

Brand: Dahua

EAN: 6923172501950

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TERMINAL WITH PROXIMITY READER FOR IC CARDS, PASSWORD RELEASE AND REMOTE CONTROL - 2.4 INCH LCD DISPLAY - DAHUA - ASI2201H-W

Controller Standalone Controllo accessi dahua

Product details

Terminale biometrico autonomo con lettore RFID
  • Standalone access control terminal - Dahua Security - ASI2201H-W
  • Touchscreen keyboard
  • Integrated 2.4" LCD display
  • Communication: Wiegand, RS485 to reader
  • Support WIFI + RJ45 LAN 100M communication
  • Identification through IC Card, Code, remote control
  • Card reading range 0-5cm
  • Capacity up to 30,000 users, up to 30,000 passwords, up to 30,000 cards, up to 150,000 events
  • RS232
  • RS485
  • Wiegand
  • 1x USB 2.0 port
  • IP65 outdoor protection (using silicone sealant)
  • Dimensions: 183mm × 80mm × 25.5mm
  • Supported operating temperature: –30 °C to +65 °C
  • For indoor / outdoor use
  • Power Supply: 12V DC 1A
  • Adapter not included
  • Net weight 262g
  • For wall installation
  • Bracket included
  • Polycarbonate and acrylic

Data sheet

ASI2201H-W

System

Main Processor

High-performance embedded processors

NetworkProtocol

IPv4; TCP; UDP; P2P

Basic

Display Screen

2.4"LCD

ScreenType

LCDs

Resolution

240(H)×320(V)

Voice prompts

Yes

Buzzers

Yes

Casing

PC+ABS/acrylic panel

Function

UnlockMode

Card/Remote/Password unlock and unlock through their combinations

CardType

IC card

Period List

128

Holiday period

128

Network Update

Yes

First User Unlock

Yes

Remote Verification

Yes

Restricted List/Trusted List

Yes

Wifi

Yes

Peripheral Card Reader

1 × RS-485 card reader

1 × Wiegand card reader

Multi-user Authentication

Yes

Multi-factor Authentication

Yes

WebConfiguration

Equipped with 2.4" LCD display (240x320 pixel resolution)

Lettore per tessere RFID

Autonomous terminal with touch keyboard and identification via:
- Code
- Combination
- Remote control

- IC CARD

Controllo tramite RS485

Communication via TCP/IP RJ45 (100Mbps), RS485 or Wiegand

Up to 30,000 users,
up to 30,000 cards,
up to 30,000 passwords,
up to 150,000 events

Questo NVR presenta la visibilità da remoto fino a 20 utenti simultanei

Smart PSS software from Dahua

Equipped with USB 2.0 port

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
