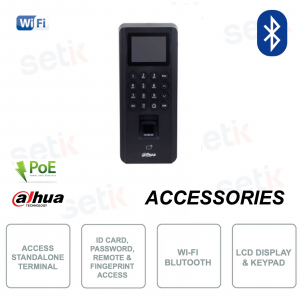

Access control terminal - PoE - Bluetooth - ID Card, Password, Fingerprint, remote control

Access control terminal - PoE - Bluetooth - ID Card, Password, Fingerprint, remote control
-57%

Dahua access control - ASI2212J-DPW - Standalone - For 1 door control - Authentication with fingerprints, password, ID Card, remote - Integrated 2.4 Inch LCD display - Backlit keypad - Blutooth technology - Supports TCP / IP and WI-Fi protocol - Wiegand - RS-485 - Alarm - Doorbell - Update online or via USB - Supports PoE power supply - For wall installation.



Reference: ASI2212J-DPW

Brand: Dahua

EAN: 6923169753836

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA - ASI2212J-DPW - ACCESS CONTROL INDEPENDENT TERMINAL - FOR SINGLE DOOR RELEASE - BLUTOOTH POE WIFI - RELEASE WITH PASSWORD, FINGERPRINT, ID CARD, REMOTE

Controller Standalone Controllo accessi dahua

Product details

Terminale biometrico autonomo con lettore RFID
  • Access control terminal - Standalone - Dahua - ASI2212J-DPW
  • Bluetooth
  • Integrated 2.4 inch LCD display
  • Backlit keypad
  • Control 1 port
  • PoE supported
  • TCP/IP and WiFi
  • Wireless Protocol: IEEE802.11b/802.11g/802.11n
  • Wireless Frequency: 2.4Ghz
  • Unlock by ID Card swipe, Remote, Fingerprint or password
  • Capacity: 30,000 users, 5,000 fingerprints, 30,000 IC cards, 30,000 passwords, 100,000 records
  • It supports Wiegand and RS-485
  • 2in/2out alarm
  • Anti-tamper tamper
  • Support card, password, fingerprint and combination
  • 2in/2out alarm
  • Doorbell
  • Updatable online or via USB
  • Door time out alarm, intrusion alarm, and tamper alarm, Anti-passback
  • Dimensions: 205mm × 86mm × 30mm
  • Weight: 0.45kg
  • For wall installation (vertical straight angle)
  • Power Supply: Standard PoE / 12 VDC
  • Operating temperature: –10 °C to +55 °C
  • Power supply: optional
  • Made of polycarbonate and ABS

Data sheet

ASI2212J-DPW

System

main processor

Embedded Processor

ButtonType

Mechanical

NetworkProtocol

UDP; TCP; IPv4; P2P

OSDP Protocol

Yes

Interoperability

ONVIF; CGI

SDKs and APIs

Yes

Basic

ProductType

Stand alone

Display Screen

2.4"LCD

ScreenType

LCDs

Screen Resolution

240(H)×320(V)

Voice prompts

Yes

Backlights

Yes

Casing material

PC+ABS

Function

Verification Method

Configuration of card, remote, password, fingerprint combination unlock and multi-user combination unlock

UnlockMode

Card, remote, password, fingerprint unlock, unlock through their combinations and multi-user combination unlock.

CardType

Card ID

Period List

128 periods

Holiday period

128 periods

Network Update

Yes

0%–95% (RH), non-condensing

Operating Altitude

0m–3,000m (0ft–9842.52ft)

operating environment

indoors

Gross Weight

0.45kg (0.99lb)

Installation

Surface Mount

Certifications

THERE IS; FCC

Installation Angle

straight

Further details

This terminal is STANDALONE .

This means that it is autonomous, able to manage functions without having to integrate other devices.

Equipped with 2.4" LCD display with blue backlight

32BIT processor with 16MB of memory

Lettore per tessere RFID

Autonomous biometric terminal with touch keyboard and identification via:
- Code

- Combination
- Fingerprints
- remote
- Swipe of ID Cards

Controllo tramite RS485

Communication via TCP/IP (RJ45 100M), RS485 or Wiegand

Up to 5,000 fingerprints , 30,000 users, 30,000 cards, 30,000 passwords, 100,000 events

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
