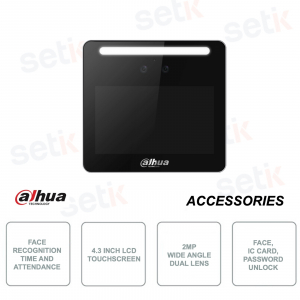

ASA3213G-MW - Face Recognition Access Terminal - 4.3 inch Display - 2MP Wide Angle Dual Lens

ASA3213G-MW - Face Recognition Access Terminal - 4.3 inch Display - 2MP Wide Angle Dual Lens
-57%

Dahua ASA3213G-MW - Access control terminal with facial recognition - 4.3" TFT touchscreen display with 480x272 resolution - 2MP double wide-angle lens , IC card reader and password authentication - IR illuminator and white light LEDs - 1,500 users, faces, cards and passwords - Up to 150,000 events - 99.5% accuracy - USB 2.0 - RS485 - 1 alarm input - 1 exit button - Door control - Anti-tampering - For indoor use - Wall or desk installation - In polycarbonate and ABS plastic.



Reference: ASA3213G-MW

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Description Product Details Technical Sheet Further Details Download

ASA3213G-MW DAHUA | BIOMETRIC READER FACE RECOGNITION / IC CARD / PASSWORD - WITH INTEGRATED 4.3 INCH DISPLAY - 2MP WIDE ANGLE DOUBLE LENS



MAIN FEATURES:

  • Terminal for access and attendance control
  • 4.3" TFT touchscreen display, 480x272 resolution
  • with 2MP dual wide-angle lens, IR illuminator and white light LED illuminator
  • It can record human faces, cards and passwords
  • Supports unlocking via face recognition, IC card or password
  • Face recognition distance: 0.3m–1.5m
  • Face recognition accuracy rate: 99.5%
  • USB 2.0 interface
  • RJ45 Ethernet 10/100Mbps
  • 1 alarm input
  • Supports up to 1,500 users, 1,500 cards, 1,500 passwords, 150,000 events
  • Supports the following alarms: coercion, tampering, intrusion, timeout and illegal card usage
  • Dimensions: 116mm × 107mm × 22mm
  • for wall or desktop installation
  • ideal for indoor use

Technical data sheet

ASA3213G-MW

Technical Specification

System

Main Processor

Embedded processor

Internet Protocol

IPv4; RTSP; RTP; TCP; UDP; P2P

OSDP Protocol

Support

Interoperability

CGI

SDK

Support

Basic

Display Screen

4.3-inch TFT screen

Screen Type

Capacitive screen

Resolution

480 × 272

Room

2MP CMOS high definition camera

Voice Prompt

Yes

Casing

PC+ABS

Function

Card Type

IC card

Network Update

Yes

Peripheral Card Reader

1 RS-485

Real-Time Surveillance

Yes

Multiple Authentication

Yes

Take Face Images after Swiping Cards

Yes

Self-Registration

Yes

Attendance

Attendance Record Export

USB flash drive export

Attendance Mode

Fixed attendance; free attendance

Attendance Statistics

Statistics by personnel, month, anomaly

Department Setting

20 departments

Shift Setting

24 shifts

Capacity

User Capacity

1,500

Face Capacity

1,500

Card Capacity

1,500

Password Capacity

1,500

Record Capacity

150,000

Port

RS-485

1

USB

1 USB2.0 port

Network

1 RJ-45, 10 Mbps/100 Mbps self-adaption

Alarm Input

1

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Tamper

Yes

General

Power Adapter

Included

Power Supply Mode

DC12V 1.5A

Power Consumption

≤ 18W

Product Dimensions

116 mm × 107 mm × 22 mm (4.57" × 4.21" × 0.87") (H×W×D)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

5%RH–95%RH (non-condensing)

Operating Environment

Indoor

Installation Method

Surface mount; desktop mount

Certification

CE/FCC

Further details

ASI7213Y-D-V3-DIMENSIONS

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
