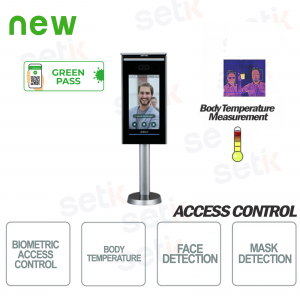

ASI7223X-A-T1 Dahua Access Control Terminal Facial Recognition Temperature Measurement Mask Detection
BEST PRICE PROMO!: SAME PRICE AS THE PREVIOUS VERSION [ASI7213X-T1] BUT WITH EXTRA ADVANTAGES !
GREEN PASS READING !
REQUEST NEW FIRMWARE FOR ENABLEMENT!
ASI7223X-A-T1 Facial recognition terminal, Dahua access control reader, evolution of the ASI7213X-T1, with table stand included , facial recognition, body temperature detection and mask identification. Accuracy 99.5% , 7" IPS touch screen 1024x600 display with dual 2MP cameras , Up to 100,000 users, Up to 100,000 facial images, Up to 100,000 passwords, Recording up to 300,000 events. RS485 / Wiegand , RS232, 2 USB, Alarm, ONVIF indoor. Useful for monitoring people's health and hygiene conditions, in periods of severe epidemics or simply for prevention. Facial recognition device, secure access control, access control terminal, access control solution, body temperature detection, temperature control device, COVID-19 security, corporate security, office access control, device for airports and stations, healthcare access control
ASI7223X-A-T1 CAN BE INTEGRATED INTO VIDEO SURVEILLANCE OR INTERCOM SYSTEMS, EXTENDING ITS FUNCTIONALITY, SUITABLE FOR THE USE OF THE DEFINITELY ADVANCED ON-BOARD FUNCTIONS AND FOR CUSTOM PROJECTS.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ASI7223X-A-T1 CAN BE INTEGRATED INTO VIDEO SURVEILLANCE OR INTERCOM SYSTEMS, EXTENDING ITS FUNCTIONALITY, SUITABLE FOR THE USE OF THE DEFINITELY ADVANCED ON-BOARD FUNCTIONS AND FOR CUSTOM PROJECTS.
BEST PRICE PROMO!: SAME PRICE AS THE PREVIOUS VERSION [ASI7213X-T1] BUT WITH EXTRA ADVANTAGES!
ASI7223X-A-T1 DAHUA | BIOMETRIC READER FACE RECOGNITION / BODY TEMPERATURE / MASK
Facial recognition device, secure access control, access control terminal, access control solution, body temperature detection, temperature control device, COVID-19 security, business security, office access control, airport and station device, healthcare access control
Dahua ASI7223X-A-T1 face recognition terminal is a kind of access control device with built-in fever screening function.
GREEN PASS READING ! REQUEST NEW FIRMWARE FOR ENABLING!
MAIN FEATURES:
- 7 inch capacitive touch IPS display
- 2MP CMOS, WDR
- Auto white light compensation, auto IR
- Up to 100,000 users, Up to 100,000 face images, Up to 100,000 passwords, Up to 300,000 event recording
- Supports Remote / Password / Face and Combined unlocking
- Face detection camera distance: 0.3 to 1.8m, human height: 0.9 to 2.4m
- With the face recognition algorithm, the access control can recognize up to 360 facial expressions.
- Face detection speed: 0.2s per face
- Accurate recognition in backlight and front light
- Support enable/disable thermometer; temperature measurement range 30°C to 45°C; temperature measurement error ±0.5°C, temperature abnormality report
- Support mask detection, support alarm report of abnormal events without mask
- Requires DSS EXPRESS BASE to display temperature alarm / mask detection and alarm pop up with images
- Support duress alarm, tamper alarm, intrusion alarm, door contact timing out alarm, and alarm
- Supports general users, patrol users, VIP users, guest users, and special users
- Evolution of the ASI7213X-T1 - Table or turnstile stand included!
Technical data sheet
| ASI7223X-A-T1 | |
| System | |
| Main Processor | Embedded Processor |
| Internet Protocol | IPv4, RTSP, RTP, TCP, UDP, P2P |
| OSDP Protocol | Yes |
Interoperability | ONVIF®; CGI |
| SDK and API | SDK Support |
| BASIC | |
| Display | Metal |
| Screen Type | Capacitive Screen |
| Resolution | 600(H)×1024(V) |
| Room | 1/2.8" 2MP CMOS high definition WDR dual camera |
| WDR | 120dB |
| Light Compensation | Car white light car IR light |
| Status Indicator | 1 indicator light. Red: Error; Green: Normal; Blue: Working |
| Voice Prompt | Yes |
| Housing Material | Aluminum alloy/tempered glass/PC |
| Function | |
| Unlock Mode | Remote/Password/Face unlock and unlock through their combinations |
| Period List | 128 |
| Holiday Period | 128 |
| Remote Verification | Yes |
| Peripheral Card Reader | 1 RS-485, 1 Wiegand |
| Real-Time Surveillance | Yes |
| WebConfiguration | Yes |
| Performance | |
| Face Recognition Range | Face-camera distance: 0.3 m–2.0 m Human height: 0.9m–2.4 m |
| Face Verification Accuracy | ≥99.5% |
| Face Recognition Time | 0.2s |
| Capacity | |
| User Capacity | 100,000 |
| Face Image Capacity | 100,000 |
| Password Capacity | 100,000 |
| Record Capacity | 300,000 records |
| Port | |
| RS-485 | 1 |
| RS-232 | 1 |
| Wiegand | 1 (input or output) |
| USB | 2 USB2.0 ports |
| Ethernet | 1 1000M Ethernet Port 1 10M/100M Ethernet Port |
| Alarm Input | 1 (Switch quantity) |
| AlarmOutput | 1 (Relay) |
| Alarm Linkage | Yes |
| Exit Button | 2 |
| Lock Control | 2 |
| Alarm | |
| Anti-Passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Regular | |
| Power Supply | Provided |
| Power Supply Mode | DC12V 2A |
| Protection Grade | IP65 (Silicone sealant is needed. For details, see the quick start guide.) |
| Power Consumption | 24W |
| Product Dimensions | 428.0mm×129.0mm×98.8mm(16.85"×5.08"×3.89") |
| Packaging Dimensions | Controller packaging: 564mm×257mm×148 mm (22.20"×10.12"×5.83") Protective case: 585mm×545mm×320mm (23.03"×21.46"×12.95") |
| Working Temperature | -30°C to +60°C (-22°F to +140°F) |
| Working Humidity | 0%RH–90%RH (non-condensing) |
| Working Environment | Indoor and outdoor |
| Gross Weight | 3.0kg (6.61lb) |
| Installation Method | Desktop |
| Certification | CE/FCC |
