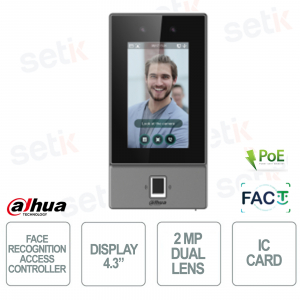

ASI6214S-PW - DAHUA | ACCESS CONTROL TERMINAL WITH FACE RECOGNITION / FINGERPRINT / IC CARD / PASSWORD / QR CODE - WITH INTEGRATED DISPLAY AND 2MP CAMERA - POE
The Dahua ASI6214S-PW facial recognition terminal is a type of access control device with integrated face and fingerprint detection function. Equipped with RFID IC CARD Reader , it allows multiple authentication: via cards, fingerprints, QR code, password, remote control, face and related combinations . It supports up to 6,000 users, 6,000 faces, 10,000 cards, 6,000 passwords, 300,000 events. Alarm integration, RS485/Wiegand/USB, voice messages. It is an ideal solution for indoor and outdoor environments, wall-mounted using the bracket included in the package.
MAIN FEATURES:
-
4.3 inch capacitive touchscreen LCD screen with 480x272 resolution
-
Dual 2MP CMOS Camera,
-
Automatic light compensation with IR
-
Supports up to 6,000 users, 6,000 faces, 10,000 cards, 6,000 passwords, 300,000 events
-
Supports unlocking by face, fingerprint, IC card, password, QR code, remote control and related combinations
-
Card reading distance: 0-3cm
-
Face detection camera distance: 0.3m–1.5m
-
Face detection speed: 0.2s per face
-
Fingerprint verification mode: 1:N
-
Supports white/blacklists
-
128 programmable periods
-
128 holiday periods
-
Unlocking first card
-
External card reader: 1 RS485 reader, 1 Wiegand reader
-
Communication: 1 RS485 port, 1 Wiegand port, 1 USB port
-
Ethernet network port (10/100/1000M)
-
Network Protocols: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP
-
Supports OSDP protocol
-
Compatible with ONVIF, CGI, SDK, API
-
Support Anti-passback, tampering, duress alarm
-
Integrated voice messages
-
Built-in buzzer
-
Power supply: 12V DC, 1.5A PoE (power supply included)
-
Consumption: ≤12W
-
IP65 level protection ideal for outdoor use
-
Material: Polycarbonate
-
Dimensions: 180.1mm × 90.1mm × 27.0mm
-
Weight: 0.70 kg
-
Operating temperature: –30°C to 60°C
-
Relative humidity: 0% ~ 90% (non-condensing)
-
Ideal for installation in open or closed environments, on the wall
Technical data sheet
| Model | ASI6214S-PW |
| System | |
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| OSDP Protocol | Yes |
| Interoperability | CGI; ONVIF |
| SDK and API | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | 4.3" LCD |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 272 (H) × 480 (V) |
| Room | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | |
