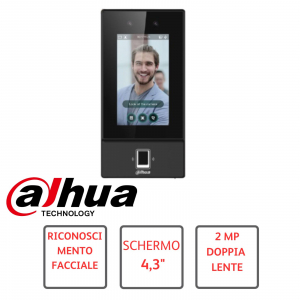

Dahua Face Recognition Access Control Terminal

Dahua Face Recognition Access Control Terminal
QUESTIONS ABOUT THE PRODUCT

 

ASI6214S - Dahua access control terminal, with facial recognition, fingerprint, access via IC Card, password, QR code, remote control and combination of previous accesses. 4.3 integrated capacitive touchscreen display with 480x272 resolution - 2MP dual lens camera - Face distance 0.3-1.5m - RS485 - Wiegand - 1 alarm input/output - Exit Button - Anti-tampering - Face verification accuracy 99.9% - Face scanning time 0.2s - 6,000 users - 6,000 faces - 10,000 ID Cards - 6,000 passwords - 300,000 events - Power supply 12V DC, 1.5A - For indoor and outdoor - Wall installation with bracket included.

Reference: ASI6214S

Brand: Dahua

FIND INSTALLER

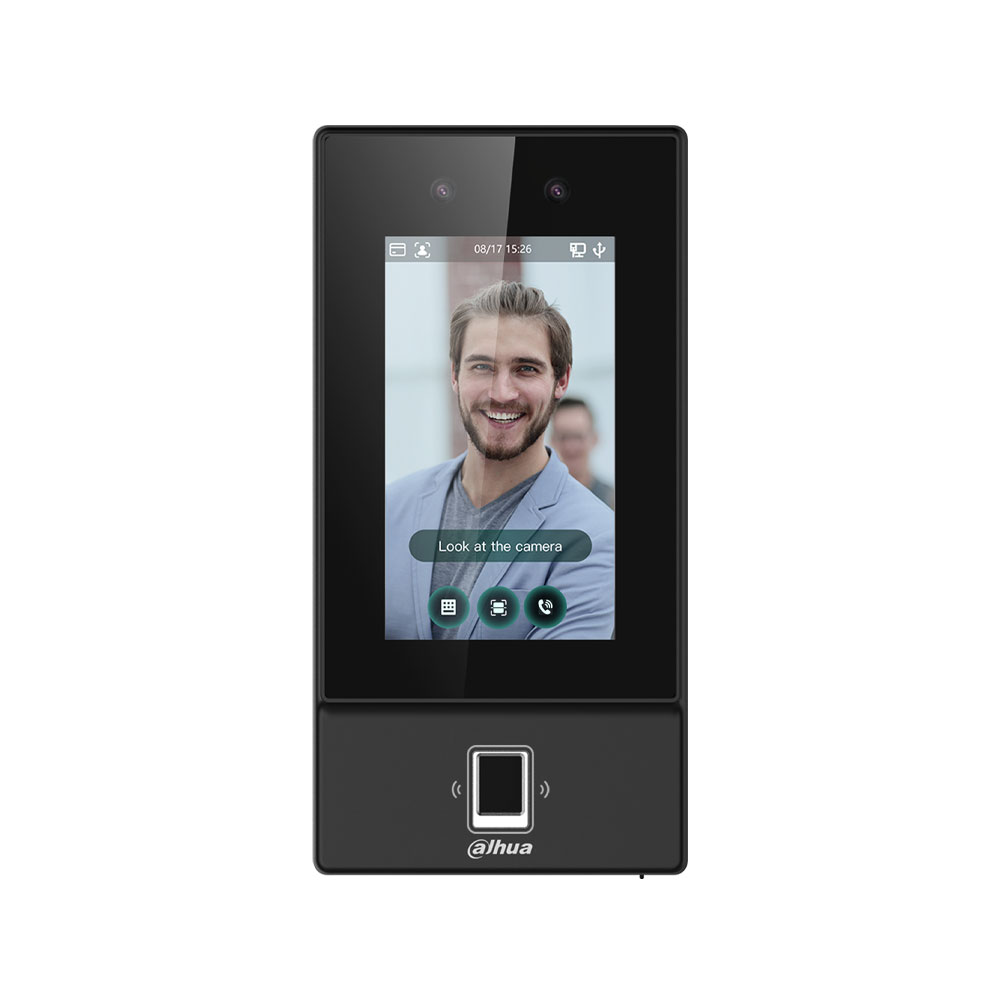

ASI6214S - DAHUA | ACCESS CONTROL TERMINAL WITH FACE RECOGNITION / FINGERPRINT / IC CARD / PASSWORD / QR CODE - WITH INTEGRATED DISPLAY AND 2MP CAMERA

The Dahua ASI6214S facial recognition terminal is a type of access control device with integrated face and fingerprint detection function. Equipped with RFID IC CARD Reader , it allows multiple authentication: via cards, fingerprints, QR code, password, remote control, face and related combinations . It supports up to 6,000 users, 6,000 faces, 10,000 cards, 6,000 passwords, 300,000 events. Alarm integration, RS485/Wiegand/USB, voice messages. It is an ideal solution for indoor and outdoor environments, wall-mounted using the bracket included in the package.







MAIN FEATURES:

  • 4.3 inch capacitive touchscreen LCD screen with 480x272 resolution

  • Dual 2MP CMOS Camera,

  • Automatic light compensation with IR

  • Supports up to 6,000 users, 6,000 faces, 10,000 cards, 6,000 passwords, 300,000 events

  • Supports unlocking by face, fingerprint, IC card, password, QR code, remote control and related combinations

  • Card reading distance: 0-3cm

  • Face detection camera distance: 0.3m–1.5m

  • Face detection speed: 0.2s per face

  • Fingerprint verification mode: 1:N

  • Supports white/blacklists

  • 128 programmable periods

  • 128 holiday periods

  • Unlocking first card

  • External card reader: 1 RS485 reader, 1 Wiegand reader

  • Communication: 1 RS485 port, 1 Wiegand port, 1 USB port

  • Ethernet network port (10/100/1000M)

  • Network Protocols: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP

  • Supports OSDP protocol

  • Compatible with ONVIF, CGI, SDK, API

  • Support Anti-passback, tampering, duress alarm

  • Integrated voice messages

  • Built-in buzzer

  • Power supply: 12V DC, 1.5A (power supply included)

  • Consumption: ≤12W

  • IP65 level protection ideal for outdoor use

  • Material: Polycarbonate

  • Dimensions: 180.1mm × 90.1mm × 27.0mm

  • Weight: 0.70 kg

  • Operating temperature: –30°C to 60°C

  • Relative humidity: 0% ~ 90% (non-condensing)

  • Ideal for installation in open or closed environments, on the wall

Technical data sheet

Product Features
Product Access Control Terminal Dahua with Facial Recognition
Screen 4.3" Touch Screen
Capacity Up to 6,000 users/fingerprints/faces, 10,000 cards, and 6,000 passwords
Event Log Records up to 300,000 events
Audio Support Supports voice messages
Protection Level IP65
Usage Area Indoor and outdoor use
Specifications
Processor Built-in Processor
Display 4.3" Capacitive Touch Screen (272 x 480 px)
Room 2 MP Dual-lens High Definition Camera
WDR Digital WDR
Light Compensation Automatic IR
Unlock Modes Fingerprint, Card, Remote Control, Password, QR Code, Face, and Combinations
Remote Verification Yes
Whitelist/Blacklist Supports whitelist/blacklist
Multi-User Authentication Yes
Real-time Monitoring Yes
WebConfiguration Supports Web Configuration
Voice Messages Yes
Buzzer Built-in
Facial Recognition Height Range 1.1 ~ 2 meters
Facial Recognition Distance 0.3 ~ 1.5 meters
Facial Verification Accuracy 99.9%
Facial Recognition Time 0.2 seconds
Fingerprint Verification Mode 1:N
IC Card Reader Yes
Card Reading Distance 0 ~ 3cm
User Capacity Up to 6,000 users
Face Image Capacity Up to 6,000 facial images
Cards Capacity Up to 10,000 cards
Password Capacity Up to 6,000 passwords
Event Log Capacity Up to 300,000 events
Schedule List 128 schedules
Holiday Periods 128 holiday periods
First Card Unlock Yes
External Card Reader 1 RS485 reader, 1 Wiegand reader
Communication 1 RS485 port, 1 Wiegand port, 1 USB port
Alarm I/O 1 alarm input / 1 alarm output
Alarm Linkage Yes
Exit Button 1 exit request button
Door Status 1 door status input
Lock Control 1 lock control output
Anti-passback, Tamper, and Coercion Alarms Yes
Network Port Ethernet ports (10/100/1000M)
Network Protocols UDP, TCP, IPv4, RTSP, SIP, P2P, RTP
OSDP Protocol Support Yes
ONVIF, CGI, SDK, API Support Yes
Operating Temperature -30°C ~ +60°C
Humidity 0% ~ 90% relative humidity (non-condensing)
Protection Level IP65
Usage Area Indoor and outdoor use
Power Supply 12 V DC, 1.5 A (power adapter included)
Power Consumption ≤12W
Dimensions 90.1 (W) x 180.1 (H) x 27 mm
Gross Weight 700 g
Installation Wall mounted
