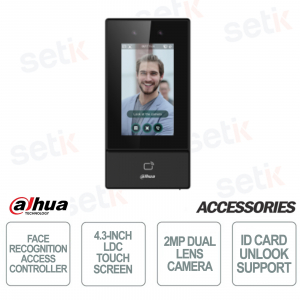

Access Terminal - Face Recognition - ID Card - Password - Built-in LCD Display - 2MP Camera

-60%

ASI6213S-D - Dahua access control terminal, with facial recognition, access via ID Card, password, combination of previous accesses . Integrated 4.3 TFT touchscreen display with 480x272 resolution - 2MP dual lens camera with DWDR - Face distance 0.3-1.5m - RS485 - Wiegand - 1 alarm input - Exit Button - Anti-tampering - Accuracy 99.9% - Face scanning time 0.2s - 6,000 users - 6,000 faces - 6,000 ID Cards - 6,000 passwords - 300,000 events - Power supply 12V DC, 1.5A - For indoor and outdoor - Wall installation with bracket included.

Reference: ASI6213S-D

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/standalone-controller/10717-dahua-asi6213s-d-access-terminal-face-recognition-id-card-password-integrated-lcd-display-2mp-camera.html

€258.64

€646.60 -60%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

ASI6213S-D - DAHUA | BIOMETRIC READER FACE RECOGNITION / ID CARD / PASSWORD - WITH INTEGRATED DISPLAY AND 2MP CAMERA WITH DWDR

Dahua ASI6213S-D face recognition terminal is a kind of access control device with built-in face detection function.

It can quickly capture the temperature of the skin surface, accurately and quickly recognize a person's face and detect the presence or absence of a mask . Equipped with an RFID ID CARD Reader , it allows multiple authentication via cards, remote, password, face. Supports up to 6,000 users, 6,000 faces, 6,000 cards, 6,000 passwords, 300,000 events. Alarm integration, RS485 / Wiegand, 1 USB 2.0. It is an ideal solution for indoor and outdoor environments, can be installed on the wall using the bracket included in the package.

MAIN FEATURES:

4.3 inch TFT LCD screen with 480x272 resolution
Dual 2MP CMOS Camera, with DWDR
Automatic light fill, reduce light pollution by using white light and IR light
Support up to 6,000 users, 6,000 faces, 6,000 cards, 6,000 300,000 events
Supports face unlock, ID card, password and related combinations
Face detection camera distance: 0.3m–1.5m, human height: 1.1m–2.0m
Face detection speed: 0.2s per face
Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card alarm
Power supply: 12V DC, 1.5A
IP65 level protection ideal for outdoor use
Material: Polycarbonate and metal body for the back
Dimensions: 180.1mm × 90.1mm × 27.0mm
Weight: 0.70 kg (1.54 lb)
Operating temperature: –30°C to 60°C
Ideal for installation in open or closed environments, on the wall, using the supplied bracket

Technical data sheet

0.70 kg (1.54 lb)

ASI6213S-D
Technical Specification
System
Main Processor	Embedded Processor
Button Type	Touch button
Internet Protocol	UDP; TCP; IPv4; RTSP; SIP; P2P; RTP
OSDP Protocol	Yes
Interoperability	CGI;ONVIF
SDK	Yes
Basic
Product Type	Standalone
Display	4.3 LDC
Screen Type	Capacitive touch screen
Screen Resolution	480 × 272
Room	2MP CMOS high definition camera
WDR	DWDR
Light Compensation	Auto IR
Voice Prompt	Yes
Buzzer	Yes
Casing	PC+GF
Function
Accessories	Wall mount bracket (included)
Installation	Turnstile mount; 86 case mounts; wall mount; surface mount

Further details

Download

Download the English Brochure

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
