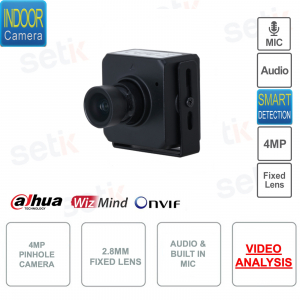

IPC-HUM4431S-L5 - Dahua - Mini Pinhole Camera with 2.8mm fixed lens and 4MP resolution - 1/3" Starlight CMOS Sensor - Smart Codec H.265+ - Dual Stream Video - WDR 120dB - Video Analysis: intrusion and line crossing - BLC - HLC - AWB - Motion - ROI - Mirror Mode - Privacy Masking - Audio 1in/1out - Event alarm - Integrated microphone - Metal body.
FIND INSTALLER
€143.47
€341.60 -58%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA 4MP ONVIF® MINI IP CAMERA - 2.8MM LENS - VIDEO ANALYSIS AND AUDIO - MICROPHONE - IPC-HUM4431S-L5
BLC / HLC / / AGC / 3DNR / WDR 120dB - Video Analysis: Intrusion and Tripwire - Audio (1 input / 1 output) - Microphone - Event alarm - Metal body.
Small size - ideal for hiding anywhere!
Product details
- Dahua ONVIF® Mini IP Camera - IPC-HUM4431S-L5
- 2.8mm fixed optics
- 4MP 1/3" CMOS sensor
- 4MP resolution equal to 2688 (H) × 1520 (V)
- Double Stream
- Video compression up to H.265+
- BLC / HLC / WDR 120dB / 3DNR / Mirror Mode / Privacy Masking
- Video Analysis: Line crossing, intrusion
- Motion Detection - ROI (Region of Interest)
- Audio: 1 input + 1 audio output
- Integrated microphone
- Event alarm
- Remote viewing with Dahua DMSS application
- Indoor camera! Without IP66 protection
- Equipped with IR illuminator
- Small size! : 31.0mm × 31.0mm × 30.0mm!
- Low weight, equal to 81g!
Data sheet
| IPC-HUM4431S-L5 | |||||
Technical specification | |||||
Room | |||||
Image Sensor | 1/3" CMOS | ||||
Max.Resolution | 2688(H)×1520(V) | ||||
ROM | 128MB | ||||
RAM | 128MB | ||||
Scanning System | Progressives | ||||
Electronic Shutter Speed | Auto/Manual 1/3s–1/100,000s | ||||
Min Illumination | 0.01 lux@F1.6 (Color, 30IRE) 0.001 lux@F1.6 (B/W, 30IRE) | ||||
S/N Ratio | >56dB | ||||
lens | |||||
LensType | Fixed-focal | ||||
Lens mount | M12 | ||||
Focal Length | 2.8mm | ||||
Max. Openings | F1.6 | ||||
Field of View | Horizontal: 95°; Vertical: 52°; Diagonal: 114° | ||||
Iris Control |
|||||
Power | |
Power Supply | 12VDC |
power consumption | Basic: 1.4 W (12 VDC) Max. (H.265 + intelligence on + WDR): 1.8 W (12 VDC) |
environment | |
Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
Operating Humidity | ≤95% |
Storage Temperatures | –40°C to +60°C (–40°F to +140°F) |
structure | |
Casing | Metal |
Product Dimensions | 31.0mm × 31.0mm × 37.1mm (1.22" × 1.22" × 1.46") (L × W × H) |
Net Weight | 81g (0.18lb) |
Gross Weight | 138g (0.30lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. |
 | This camera is suitable for indoor environments ! - Without IP66 protection |
 | This camera features a resolution of 4MP Resolution 2688(H)×1520(V) |
 | 2.8mm fixed optics |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera features SMART DETECTION:
|
 | Remote visibility on mobile using the Dahua DMSS application. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | Microphone on board! |
 | 1 AUDIO input and 1 output |
 | This product is covered by a 24 month guarantee. |
