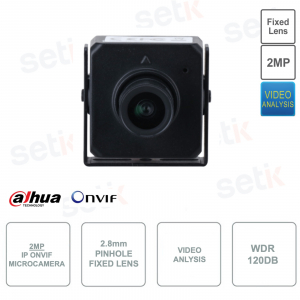

DAHUA ONVIF® MINI IP CAMERA 2MEGAPIXEL 2.8MM - VIDEO ANALYSIS - AUDIO - S3 VERSION - IPC-HUM4231S-L5-S3 - Dahua

Prodotto Marca Dahua
Mini IP Camera ONVIF® S3 Version Dahua - IPC-HUM4231S-L5-S3 - Dahua
2Megapixel FULL-HD 1080P resolution - 2.8mm Pinhole lens - 1/3" CMOS sensor
BLC / HLC / WDR 120dB - Audio (input/output) - Video Analysis with intrusion and tripwire detection - Motion Detection - ROI - Privacy Masking - Image Rotation -
Small size and light weight - Ideal for hiding anywhere!

Product details

Cilindretto Dahua, ottica 2.8mm pinhole + cavo 8mt , per IPC-HUM8231-E2 IPC-HUM8231-E1
  • ONVIF® mini IP camera - IPC-HUM4231S-L5-S3 - Dahua
  • S3 version
  • 2.8mm Pinhole fixed lens
  • 1/3" CMOS sensor
  • Video compression up to H.265
  • BLC / HLC / WDR 120dB / 3DNR / AWB / AGC
  • Video Analysis: Line crossing, intrusion
  • Motion Detection - ROI (Region of Interest)
  • Audio: 1 input + 1 audio output
  • Without IP66 protection
  • Equipped with IR illuminator
  • Small size! :31mm×31mm×37mm
  • Weight 81g

Data sheet

model IPC-HUM4231S-L5-S3
Room
1/3" 2mpx CMOS sensor

H.265 video compression
Frame rate (main stream): 1920×1080 @1-25/30fps
WDR (120dB), 3D DNR, AWB, AGC, BLC, HLC
Motion detection, ROI (4 zones), Mirror function, image rotation, privacy mask up to 4 areas
2.8mm fixed lens (viewing angle: 95°x52°x114°)
IVS video analysis functions: line crossing, intrusion
Intelligent functions: motion detection, scene change, network disconnection, IP address conflict, illegal access, etc.
1 audio input and 1 audio output
Onvif compatible
Operating temperature: -40°C to +60°C
12VDC power supply
Dimensions: 31mm × 31mm × 37mm
Weight: 0.081kg

Further details

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
Questa telecamera ha una risoluzione 2Mpx 1920x1080 This camera features a resolution of 2Megapixel 1080P FULL-HD :
Image sensor 1/2.8” 2Megapixel CMOS
Ottica fissa 3.6mm Fixed 2.8mm PINHOLE optics

This camera features SMART DETECTION:
- Line crossing recognition
- Intrusion recognition


Full HD

Remote visibility on mobile using the Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Italian Guarantee icon This product is covered by a 24 month guarantee.
