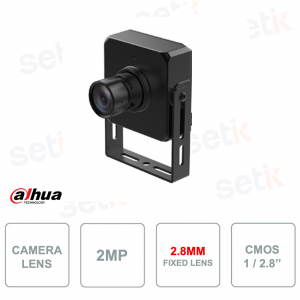

2MP 2.8mm Pinhole Optics - 2MP Full HD CMOS sensor

2MP 2.8mm Pinhole Optics - 2MP Full HD CMOS sensor
-58%

IPC-HUM8241-L5 - Dahua - 2.8mm fixed Pinhole lens - 1 / 2.8 "2MP FullHD 1920x1080p CMOS sensor - Ideal for Dahua IPC-HUM8241-E1



Reference: IPC-HUM8241-L5

Brand: Dahua

EAN: 2123456791549

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PIONHOLE OPTICS - 2.8MM - 1 / 2.8 "2MP CMOS SENSOR - DAHUA - IPC-HUM8241-L5

Dahua
Fixed Pinhole lens 2.8mm - 2MP Full HD 1080p Dahua - IPC-HFW3441M-AS-I2
2.8mm fixed lens - F2.0 aperture - 1 / 2.8 " CMOS sensor with FullHD 1080p 2MP resolution - Ideal for IPC-HUM8241-E1

Product details

  • 2.8mm 2MP Pinhole Lens with Full-HD CMOS Sensor - Dahua - IPC-HUM8241-L5
  • 1 / 2.8 "2MP progressive scan CMOS sensor
  • 2Megapixel Full-HD 1920x1080p
  • 2.8mm fixed lens
  • Compatible with IPC-HUM8241-E1 and many others
  • Item size: 35mm × 35mm × 28.4mm
  • Operating temperature: –40 ° C to + 60 ° C

Data sheet

Data sheet

Model IPC-HUM8241-L5
Image Sensor 1 / 2.8 "
Scanning System Progressive
Effective Pixels 1920 (H) x1080 (V)
Minimum Illumination

0.005 Lux@F2.0 (Color, 30 IRE)

0.0005 Lux@F2.0 (B / W, 30 IRE)

S / N Ratio > 56 dB
Lens
Lens Type Fixed focal
Lens Mount M12
Focal Length 2.8mm
Max. Aperture F2.0
Field of View Horizontal: 109 °; Vertical: 58 °; Diagonal: 127 °
Irisi. Control Fixed
Close Focus Distance 0.5 m
Certifications
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU; FCC: 47 CFR FCC Part 15, Subpart B
Environmental
Operating Temperature –40 ° C to + 60 ° C (–40 ° F to 140 ° F)
Operating Humidity ≤95%
Storage Temperature –40 ° C to + 60 ° C (–40 ° F to 140 ° F)
Construction
Casing Metal
Dimensions 35 mm × 35 mm × 28.4 mm (1.38 "× 1.38" × 1.12 ")

Further details

No further details available

Download

Download the English brochure
Schema dimensioni telecamera
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
