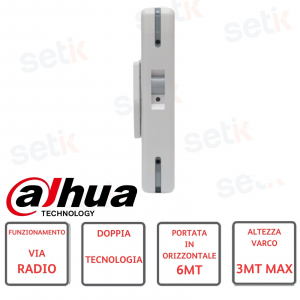

ARO-CENTRUM-W2-868 - Dahua - Dual technology sensor for window protection - Infrared anti-masking - Immune to animals - Bidirectional 868Mhz wireless communication - horizontal detection range 6 m, max passage height 3 m, 3.6 and 3 V power supply - Shutter function - IP54 protection rating
FIND INSTALLER
€142.69
€331.84 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Description Product Details Technical Data Sheet Further Details Download
ARO-CENTRUM-W2-868| DAHUA DUAL TECHNOLOGY SENSOR FOR WINDOWS - WIRELESS 868MHZ - ANTIMASKING
DUAL TECHNOLOGY SENSOR - FOR WINDOW PROTECTION - WIRELESS 868MHZ
Dahua takes care of your safety 100% and that is why it has created a line of highly reliable alarm products , capable of protecting your home and making you feel completely safe.
This is because it uses wireless technology , which allows you to combine a vast range of security devices of different nature, such as surveillance cameras and CCTV recorders.
Main features:
- Double double tent technology - Dahua - ARO-CENTRUM-W2-868
- With curtain sensor
- Wireless communication with bidirectional 868Mhz frequency
- Communication range up to 1,000m
- AES128 encryption
- PIR with Fresnell lens
- Immune to animals
- Frequency hopping
- Automatic temperature compensation
- LED Activates the detection displays while keeping the memory displays enabled.
- Power supply: 3.6V / 1 3.4Ah lithium battery supplied
- Consumption: In operating mode 16uA with Antimask inserted 22uA
- Average battery life 2 years
- IP54 protection
- Dimensions: 220 x 40 x 30 mm
- Operating temperature: -10°C / +55°C
Product details
Data sheet
Power supply: 3V or 3.6V lithium battery
Detection absorption (with LED on): 600uA
Absorption in operating mode (ANTIMASK INSERTED): 16uA - 22uA
Alarm relay time: 1 second
Antimask+Tamper relay time: minimum 2.5 seconds
Electronic alarm relay: 10mA at 3V
Antimask+Tamper relay: 10mA at 3V
Tamper: 100mA at 30V
Wall Tamper: 300mA at 48V
Working temperature: -10°C / +55°C
Ambient Humidity: 95%
Dimensions without accessories: 220x40x30mm
