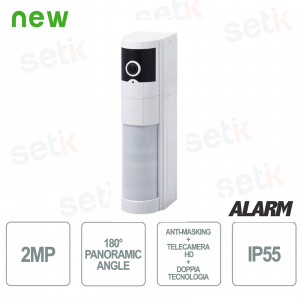

VXI-DAM/CMOD Infinity intrusion detector kit with anti-masking and dual technology + Wireless HD camera with 180° panoramic angle for visual verification of VX Infinity sensor alarm activations, day and night
A powerful combination of intelligent outdoor detection and HD camera that offers a reliable video alarm verification solution for home and business security. The solution is based on OPTEX's best-selling outdoor intruder sensor, VX Infinity, complete with instant notification, live streaming and recording from the easy-to-mount, 180-degree HD camera module with night vision.
The outdoor sensor and Wi-Fi camera can be added to an existing alarm panel or installed as a stand-alone outdoor intrusion detection solution and managed directly from a mobile app. VXI-AM/CMOD is the wired sensor with dual technology equipped with anti-masking.
FIND INSTALLER
INTRUSION DETECTOR KIT WITH ANTI-MASKING AND DUAL TECHNOLOGY + WIRELESS HD CAMERA WITH 180° PANORAMIC ANGLE - OPTEX
Product details
- Intrusion detector kit
- HD Wireless Camera
- Anti-masking
- Double technology
- 180° panoramic angle for verification
- 2MP sensor
- H.264HP
- IP 55 protection
- Micro(SD) 32Gb
- 24 VDC
Data sheet
| Model | VXI-DAM/CMOD |
| Wireless connectivity | IEEE 802.11 b/g/n |
| Data encryption | AES 128-bit |
| Connection protocol security | WEP/ WPA/ WPA2 (TKIP, 128-bit AES) |
| Simultaneous views | OPTEX Vision App |
| Sensor image | 2MP (Full HD) |
| Image Resolution | 1080P/ 720P/ VGA |
| View Angle | H: 180° V: 100° |
| Minimum illumination | 0 lux |
| Night View | Low and High Infrared LED Light with IR Switch |
| Image Compression | H.264 HP |
| Image resolution | Full HD |
| Memory cards | microSD card (max. 32 GB) |
| Power input | 9.5 to 24 V DC |
| Low infrared mode | max. 400 mA / |
| High infrared mode | max. 1.0A |
| Activation time | 2 min |
| LED indicator | 1 LED (red and blue) |
| Microphone | Integrated |
| IR mode selector: | High / Low |
| Low Antenna | The external antenna (CMOD-ANT) |
| Operating temperature | -10°C to +50°C |
| Operating humidity | 90% max |
| IP rate | IP 55 |
| Weight | 280g |
| Detection Method | Passive Infrared |
| PIR detection coverage | 12 m, wide 90° / 16 zones |
| PIR maximum distance | 12 - 2.5 m (5 levels) |
| Detectable speed | 0.3 - 1.5m/s |
| Sensitivity | 2°C at 0.6m/s |
| Power input | 9.5 – 18 VDC |
| Current consumption | 35 mA (max) at 12 VDC |
| Alarm period | 2 ±1 sec. |
| Preparation period | Approx. 60 sec (LED flashes) |
| Alarm output | selectable, 28 VDC 0.1 A max. Trouble output: NC 28 VDC 0.1 A max. |
| Tamper Output | 28 VDC 0.1 A max |
| Activates when cover is removed LED indicator | Red: Preparation, Alarm, anti-mask |
| RF interference | No alarm 10V/m |
| Operating temperature | -20 to +45°C |
| Operating humidity | 95% max. |
| International protection | IP55 |
| Mounting | Wall, pole (outdoor / indoor) |
| Mounting height | 0.8 - 1.2m |
| Weight | 500g |
