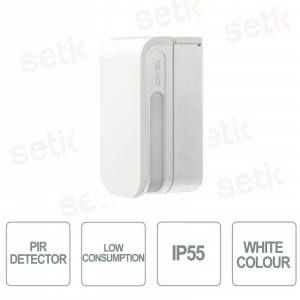

Double PIR detector for external side view. 12m per side with anti-masking, Can be connected to a CCTV camera to send visual alarms, Advanced SMDA processing logic, 5-level adjustable detection range, 4 detection zones (2 per side) PEU comb resistor . IP55 protection - BXS-STW
https://www.setik.biz/en/sensors/9923-optex-bxs-rw-double-pir-detector-for-external-lateral-view-ip55.html
€130.25
€191.54 -32%
taxes included
discover the available quantity
DOUBLE PIR DETECTOR FOR WIRE OUTDOOR SIDE VIEW - 12M COVERAGE ON EACH SIDE
Product details
- Double PIR detector
- Type: Double PIR wired detector for external side view
- PEU comb resistor
- Detection speed from 0.3 to 2.0 m/s
- 4 sensitivity levels
Data sheet
| Detection method | Passive infrared |
| Coverage | 24 m; 12 m on each side, 4 zones; 2 zones on each side, 180° narrow beam |
| PIR coverage limit | Selectable on 5 levels: m 2.50, 3.50, 6.00, 8.50, 12.00 |
| Detection angle from the wall | From the wall: 0° inclined forwards Away from the wall: 3° inclined forwards selectable |
| Detectable speed | from 0.3 to 2.0 m/s |
| Sensitivity | Normal: 2.0°C @ 0.6 m/s High extreme: 1.0°C @ 0.6 m/s individually selectable for each side |
| Supply voltage | from 3 to 9Vdc. lithium or alkaline batteries |
| Current absorption (except during the walk test) |
15µA standby/8mA max. @ 3Vdc |
| Alarm period | 2.0 ± 1 second |
| Warm-up period | 60 seconds or less (LED flashes) |
| Alarm output (Right) | Solid state relay 10mA 10Vdc. max [right individual or general], [NA or NC] selectable |
| Alarm output (Left) | Solid state relay 10mA 10Vdc. max [right individual or general], [NA or NC] selectable |
| Fault output | Solid state relay 10mA 10Vdc. max., [NO or NC] selectable |
| Tamper output | The tamper output is shared with the fault output |
| LED indicators | red LED; 1. Heating, 2. Alarm (DIP switch ON or motion test) |
| Operating temperature | from -30°C to +60°C |
| Ambient humidity | 95% max. |
| Degree of protection | IP 55 |
| Fixing | Wall-mounted, pole-mounted (outdoors, indoors) |
| Fixing height | from m 0.80 to 1.20 |
| G weight | 550 |
| Accessories | Connector for power and alarm (Right). Alarm Connector (Left), Fault Connector, Velcro Tape, Screw (4x20 mm) x 2 |
