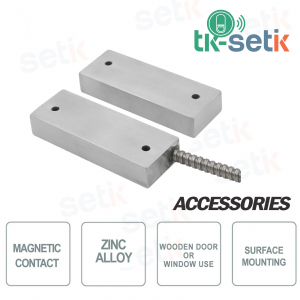

Setik CSA-403AP exposed magnetic contact

Setik CSA-403AP exposed magnetic contact
-50%

Setik magnetic contact, ideal for installation on wooden doors and windows. Container Zinc Alloy, Fixing with screws. Compatible CSA 403-AP Setik TK-403AP

Reference: TK-403AP

Brand: Setik

EAN: 8058258767765

Manufacturer Object ( [id] => 7 [name] => Setik [description] =>

Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!

[short_description] =>

Setik was founded in 2012.
Initially 10 products in the catalogue, today almost 4,000.

[id_address] => [date_add] => 2012-03-20 12:17:52 [date_upd] => 2022-04-19 17:28:56 [link_rewrite] => setik [meta_title] => Made by Setik [meta_keywords] => setik, cctv, Made by Setik [meta_description] => Setik CCTV production [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VISIBLE MAGNETIC CONTACT IN ABS - SETIK CASE

Contatto magnetico a vista setik

DESCRIPTION:

Setik offers its line of alarm products able to guarantee high protection wherever you want to install them.

The TK-403AP is a visible magnetic contact, particularly suitable for installations on wooden doors and windows.

The container is made of resistant ABS material and the fixing to the surface is really simple thanks to the supplied screws.

Product details

  • Magnetic contact - Setik
  • Visible assembly
  • Ideal for installations on wooden doors and windows
  • Zinc alloy housing
  • Surface mount with screw
  • Dimensions: 50mm x 18mm x 10mm

Contatto magnetico a vista Setik TK-403AP

Data sheet

model TK-403AP
Material ABS
Max.Voltage/Current 100V/0.5A
ContactType NC or NO
Gap 30 - 40mm
mount Surface Mount
size 50mm(L) x 18mm(W) x 10mm(H)

Further details

DISCOVER THE FULL RANGE OF TK SETIK SENSORS

Model Guy Characteristics Coverage
TK-501 Internal Volumetric Wired Sensor PIR, Pet Immune 12MT
TK-504 Internal Volumetric Wired Sensor PIR+MW, Pet Immune 12MT
TK-504A Internal Volumetric Wired Sensor PIR+MW, Pet Immune, Anti-Masking 12MT
TK-405M Visible magnetic contact Metal
TK-415-TF Recessed magnetic contact ABS
TK-314N Recessed magnetic contact 6mm ABS
TK-450N Visible magnetic contact for up-and-over doors Zinc alloy
TK-314CSA Recessed magnetic contact Copper
TK-403AP Visible magnetic contact Zinc alloy
TK-RY60 Barrier Transmitter and Receiver Max range 60M, for indoors and outdoors
TK-RY100 Barrier Transmitter and Receiver Max range 100M, for indoors and outdoors
Schema dimensioni contatto magnetico TK-403AP

Downloads

Datasheet (Currently Not Available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
