Ceiling Pir detector 360° detection

Ceiling Pir detector 360° detection
-75%

DS-PD2-P12QE-C | OCTOPUS-DQ | Pyronix Hikvision - Ceiling PIR Detector - 1 Dual Infrared Sensor - Detection Range 12m / 360° , Detection Speed 0.3~3m/s, Built-in EOL Resistors, Auto Adjustable or High Sensitivity, 60 Zones & 7 Planes PIR Lens, Sealed Optics

Reference: DS-PD2-P12QE-C

Brand: Hikvision

EAN: 6954273685553

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

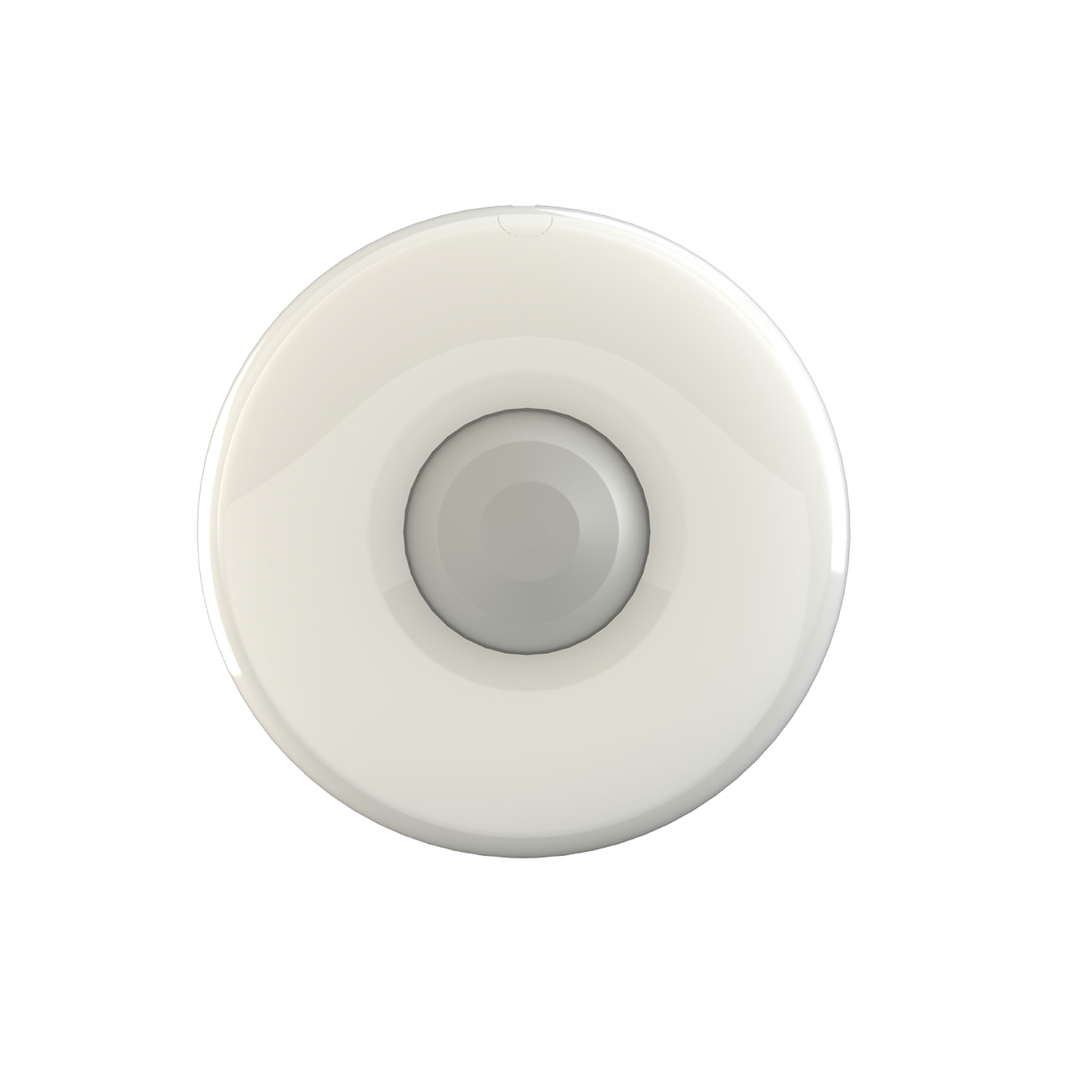

DS-PD2-P12QE-C | PYRONIX-HIKVISION | CEILING PIR DETECTOR - INDOOR USE - WIRED - 360° COVERAGE


INDOOR - PIR DETECTOR - "PYRONIX-HIKVISION" - INDOOR - CEILING

Offering comprehensive overhead protection, DS-PD2-P12QE-C is the perfect security solution for any area the perfect security solution for any large area. This quad infrared ceiling mount detector uses advanced technologies from Pyronix for peace of mind.
Pyronix for peace of mind, covering from retail aisles to large offices



Ceiling PIR Detector - 360° Coverage (DS-PD2-P12QE-C):

  • PIR Detector - HIKVISION Pyronix - DS-PD2-P12QE-C
  • Designed for internal use
  • 360º coverage
  • Four zone PIR
  • Improved plastics
  • Pulse count (1, 2 and 3)
  • Automatic sensitivity
  • Digital temperature compensation
  • Independent Floating Thresholds (IFT)

Data sheet

DS-PD2-P12QE-C

Technical features

Automatic sensitivity
Sensitivity options Auto, high and low options
Quad element pyroelectric sensor
EOL resistor on board
Tamper protection Front and rear

Optical, lens & detection features

Detection speed 0.3 - 3.0m/s
360º coverage
Coverage diamete 12 meters (mounted at 4m)
Detection method Low noise quad element pyroelectric sensor

Mounting

Maximum mounting height 4m
Ceiling mounted
Recommended mounting height 2.4 - 4.0m

Environmental & operating features

Storage temperatures -40ºC to +80ºC
Certified operating temperatures -10ºC to +40ºC
Physical dimensions (H x W x D) 94 x 94 x 33mm
Weight 62g

Electrical & battery

Operating voltage ~9-16V DC
Alarm current ~25mA at 12V DC
Quiescent current consumption ~15mA at 12V DC

Certifications & warranties

EN certified EN50131-2-2:2008 EN50131-1:2006 + A1:2009 PD6662:2010
Environmental class II
Warranty 5 Years
Security Grade 2

Further details

Currently unavailable.

Downloads

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
