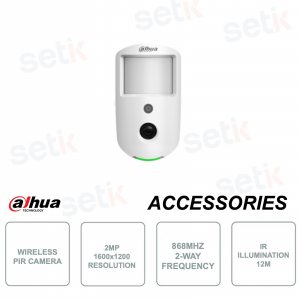

Wireless PIR detector with 2MP camera - 868Mhz frequency - Indoor

Wireless PIR detector with 2MP camera - 868Mhz frequency - Indoor
BEST PRICE -35%

ARD1731-W2-868 - Dahua - PIR with integrated camera - 2MP 1600x1200 resolution - Image transmission with RF-HD technology (transmission speed: 6 HD images/10 seconds) - IR illuminator 12m - Day/Night - Updatable in cloud - Encryption AES128 - 868Mhz bidirectional wireless frequency - Tamper - Frequency Hopping - For indoor use - 1 light indicator - 1 power button - Tamper alarm - Low battery alarm - Battery level indicator - Transmission distance: 300m (RF-HD) / 1.600m RF ( in open field) - Power supply: 3 CR123A batteries - In polycarbonate and ABS - White colour.

Reference: ARD1731-W2-868

Brand: Dahua

EAN: 6923172546647

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARD1731-W2-868 | PIR DETECTOR WITH INTEGRATED CAMERA 2MP 1600x1200 - BIDIRECTIONAL FREQUENCY 868MHZ - IR 12M - DAHUA TECHNOLOGY


Prodotto Dahua

WIRELESS PIR CAMERA - 868MHZ - RESOLUTION 2MP 1600x1200 - IR ILLUMINATION 12M

Dahua takes care of your safety 100% and that's why it has created a line of highly reliable alarm products , able to protect your home and make you feel completely safe!

This wireless PIR detector has a wireless communication with 868Mhz frequency. It is able to acquire, with its integrated camera, images with a resolution of 1600x1200 pixels (2MP). It uses RF-HD transmission technology, which allows 6 HD images to be sent in 10 seconds. It has a transmission range in open field and in the absence of obstacles equal to 300m for RF-HD images and 1,600m for RF images - IR Illuminator 12m - Tamper Alarm - 3 detection sensitivity levels, configurable by the user - Ideal solution for for setting up indoor video surveillance systems - Updatable in the cloud - Luminous alarm indicator - On and off button - Appearance: white - Made of polycarbonate and ABS, for fixed wall installation.

Product details

Main features:

  • Wireless PIR Detector - Dahua - ARD1731-W2-868
  • Wireless communication frequency 868Mhz
  • Camera resolution 2MP 1600x1200
  • Send RF images up to 1,600 in open field
  • Sending RF-HD images up to 300m in open field
  • Illuminator up to 12m IR
  • Suitable for day and night use
  • Tamper alarm
  • Low battery detection
  • Current battery level display
  • Alarm light
  • Power key
  • 3 levels of detection sensitivity configurable
  • AES128 encryption
  • Power supply: 3xCR123A batteries
  • For wall installation
  • Cloud update (updatable remotely)
  • Manufacturing material: polycarbonate and ABS
  • Dimensions: 127.6mm x 71mm x 53.2mm
  • Net weight: 202g
  • Operating temperature: –10 °C to +55 °C
  • Appearance: white color

Data sheet

ARD1731-W2-868

Video

Field of View

88° (H);68° (V)

Image Type

jpeg

Resolution

1600×1200; 1280×960; 640×480; 320×240

Frame Rates

2

Illumination Mode

Infrared Light

Illumination Range

12m (39.37ft)

Day/Night Switch

Colour/Black & White

Function

Indicator Light

1 × green alarm indicator

Button

1 × power switch

Remote Update

Cloud update

Low Battery Detection

Yes

Battery Level Display

Yes

Tamper

Tamper alarm

Signal Strength

RF Signal testing
RF-HD signal test

technical

Detection Mode

PIR

Sensitivity

3 levels adjustable

Detection Range

12 m (39.37 ft) (86°) with installation height of 2.2 m (7.22 ft)

Detection Speed

0.3m/s–3m/s (0.98ft/s–9.84ft/s)

Pet Immunity Level

≤18kg (39.68lbs)

White Light Resistance Level

2000 lux

Two-way Digital Temperature Compensation

Yes

Scenario

indoors

Operating Current

65 μA

Alarm Current

Day: 170mA (Avg); 800mA (Max)
Night: 230mA (Avg); 2.8A (Max)

Wireless

Carrier Frequency

RF:868.0MHz–868.6MHz
RF HD:2.4GHz

Communication Distance

RF:Up to 1,600 m (5,249.34 ft) in an open space
RF-HD:Up to 300 m (984.25 ft) in an open space

Communication Mechanism

Two way

Frequency hopping

Yes

Encryption Mode

AES128

General

Power Supply

CR123A*3

Battery Life

4 years (if triggered twice a week with a battery efficiency of 70%)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%–90% (RH)

Product Dimensions

127.6mm × 71.0mm × 53.2mm (5.02" × 2.80" × 2.09")

Packaging Dimensions

121.0mm × 65.0mm × 170.0mm (4.76" × 2.56" × 6.69")

Net Weight

202g (0.45lb)

Gross Weight

333g (0.73lb)

Installation

Wall mount

Casing

PC + ABS

Certifications

THERE IS

Further details

Schema componenti ARD311-W

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
