Indoor wireless detector - Dual technology - PIR and microwave - Detection up to 10m - For immunity 25kg
KX10DTP2-WE- DS-PD2-D10P-W Pyronix Hikvision - Rilevatore Senza Fili PIR e microonde - Per interni - Pet immune 25Kg - Portata PIR fino a 10m - Doppia tecnologia: PIR e micro-onde - 4 bande di frequanza per evitare cross-talk - Compensazione digitale della temperatura - Output allarme
FIND INSTALLER
discover the available quantity

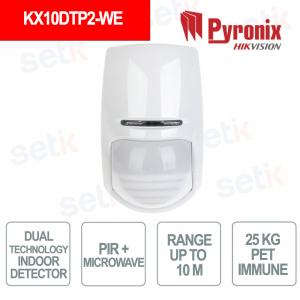

KX10DTP2-WE | PYRONIX-HIKVISION - PIR AND MICROWAVE MOTION SENSOR - PET IMMUNE 25KG - 10M DETECTION COVERAGE - INDOOR
|
|
PET IMMUNE RADIO 868MHz PIR MOTION SENSOR "PYRONIX-HIKVISION" AXIOM HUB
Hikvision aims to offer maximum security for its customers and that is why, every time it designs a product, it creates it Smart . Since Pyronix's entry into the Hikvision group , truly formidable products have been born on the market, capable of guaranteeing double the safety . This Pyronix-Hikvision KX10DTP2-WE sensor detects movement via PIR technology without taking into account the movement of our pets (pet immunity). Fully compatible with AXIOM HUB GPRS , AXIOM HUB 3G/4G alarm control panels
|
AXIOM HUB: WHAT IS IT ABOUT? Axiom HUB is the new and innovative radio intrusion control unit that natively integrates Hikvision video management. Wi-Fi transmission and advanced Intruder Verification technology for alarm video verification make Axiom HUB the ideal control unit for the protection of property and people in residential and small business applications. With an elegant design, easy to install and use thanks to the guide integrated voice. It is compatible with the HiK-Connect app, for complete system control (arming, disarming and monitoring). The revolutionary Intruder Verification video verification function allows users and security guards to quickly verify and confirm system alarms through high-resolution video clips BROWSE THE LEAFLET
|
|
Documentation: Brochure(Currently Not Available) | |
Data sheet
| KX10DTP2-WE | |
| Compatibility | PYRONIX Enforcer wireless alarm systems |
| Frequency band | 868MHz |
| Radio communication range (in open area) | max. 1600 m |
| PIR detection range | 10m/85° |
| Diet | 2 x 3V Battery Type CR123A |
| Battery life (in power saving mode) | ~ 2 years |
| Motion speed detectable | 0.3 ... 3 m/s |
| Digital temperature compensation | |
| Immunity to animals | ≤ 25kg |
| Microwave frequency band | 10.515GHz, 10.525GHz, 10.535GHz, 10.579GHz |
| Recommended mounting height | 1.8 ... 2.4m |
| Some features | - Passive infrared (PIR) and microwave (MW) - Adjustable PIR/MW detection sensitivity - Quick pairing of the detector with the control panel using a single button With a combination of PIR and MW detection high false alarm immunity has been achieved - The MW detector's ability to operate in one of 3 frequency ranges prevents wave interference and helps maintain system reliability when multiple devices are placed within close proximity of each other - Detection of tampering - opening of the case, removal from the fixing surface |
| Operating temperature | -10°C ... 50°C |
| Color | White |
| Dimensions | 117x69x59mm |
| Weight | 0.166kg |
MAXIMUM RELIABILITY
Axiom HUB uses solid and effective Pyronix Hikvision radio technology.
Stability is guaranteed by a historical and proven presence on the market and the sensors and radio transmission have a degree of reliability that has no equal. Thanks to its technological pluses, it guarantees stable and long-range communication up to 800m in open field.
TWO-WAY RADIO TECHNOLOGY
Axiom HUB guarantees maximum transmission reliability thanks to the confirmation of receipt of the message sent and the retransmission in case of non-delivery. The proprietary dual antenna hopping algorithm ensures that the best channel is always used for transmission while Advanced jamming detection prevents attempts to interrupt the system, both accidental and intentional.
CONFIGURATION VIA WEB SERVER
Axiom HUB has an integrated web server that allows you to configure the device via a web browser. For maximum flexibility and time savings, setup can be done quickly and efficiently using a compatible laptop or smart device.
SIMPLE AND INTUITIVE PROGRAMMING
The configuration of the Axiom HUB system, thanks to the simple and intuitive interface, is immediate. Two configuration modes are possible: on-site installation with connection to the panel directly via web browser or with iVMS-4200 video management software and system programming via the Hik-Connect app. In addition, the "one push to learn" function present on all wireless intrusion devices guarantees simple and rapid learning of the same, bringing advantages in terms of time and money.
LAN, WI-FI AND 4G COMMUNICATION
The variety of communication technologies of Axiom HUB is unmatched, in fact it has LAN, Wi-Fi, GPRS* and 3G/4G connections natively integrated into the control unit. IP transmission channels can be used simultaneously to communicate with multiple devices, ensuring maximum security in alarm transmission. In the event of an alarm event, Axiom HUB manages the transmission in an extremely flexible way via voice messages, push notifications, SMS or standard digital protocols for communicating with the surveillance units.
*depending on the plant
