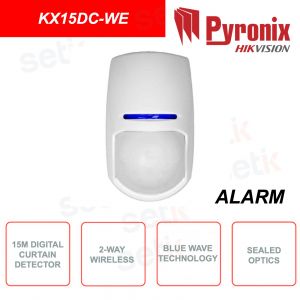

Bidirectional PIR detector - Curtain lens - Range 15m

Bidirectional PIR detector - Curtain lens - Range 15m
-45%

KX15DC-WE Hikvision Indoor Wireless PIR Detector, Range up to 15m - Blue Wave technology - 868Mhz two-way radio technology - Sealed optics - Digital temperature compensation - Two-way Enforcer radio technology - SSI power indicator - EN50131-1 compliant.



Reference: KX15DC-WE

Brand: Pyronix

Manufacturer Object ( [id] => 32 [name] => Pyronix [description] =>

Pyronix boasts a wide range of wired, hybrid and wireless intrusion detection products, relying on the latest technologies developed and created by its in-house teams. Winners of major awards for the new technologies they have discovered and implemented, Pyronix is still a guarantee in the field of security

[short_description] =>

Pyronix 42.jpg

Pyronix, a leading specialist in the field of intruder alarms, joined Hikvision, the world's number one company for surveillance solutions, in May 2016

[id_address] => [date_add] => 2019-01-24 17:10:41 [date_upd] => 2022-03-23 16:20:19 [link_rewrite] => pyronix [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


Description Product Details Data Sheet Further Details Download

KX15DC-WE | HIKVISION WIRELESS PIR DETECTOR WITH RANGE UP TO 15M


HIKVISION INDOOR WIRELESS PIR DETECTOR

Hikvision aims to offer maximum security for its customers and that is why, every time it designs a product, it creates it Smart . Indoor wireless PIR detector, Enforcer two-way radio technology, Sealed optics, Blue Wave technology and maximum range of 15M

KX15DT
INDOOR WIRELESS PIR DETECTOR:
Pyronix-Hikvision indoor detector, Double detection technology, Volumetric coverage, maximum range 15 meters, Optimal installation height 2.4-4 meters, Anti-opening and anti-tampering tamper.

- Indoor wireless PIR detector
- Maximum range 15 m
- Curtain flap
- Range in open field up to 1.6km
- Optimal Installation Height 2.4 - 4m
- Two-way Enforcer radio technology
- Blue Wave technology
- Instant Bidirectional Device Control (ITDC)
- 868MHz FM two-way radio technology
- Coverage angle 20 degrees
- Detection zones: 46
- Survey plans: 6
- Automatic Sensitivity
- Digital temperature compensation
- 128bit encrypted protocol
- 9-16VDC power supply
- 3mm ABS plastic case with electrostatic reduction
- Operating temperature -30 ° C / + 70 ° C
- Dimensions: 117 x 69 x 50mm
- Battery. 1 x CR123A, 2 years lifespan

Documentation: Brochure

Data sheet

KX15DQ
Lens Characteristics PIR Yes

Volumetric lens 85 degree coverage, 60 zones and 7 planes

No

Pet immunity coverage, 6 planes and 56 zones

No

Curtain lens, 20 degree coverage, 46 zones, 6 planes

Yes

Long range lens, 20 degree coverage, 24 zones, 6 planes

No

Maximum range

15m

Optimum installation height

Max 4m

Creep-zone protection

Yes
Technical Characteristics

Animal Immunity

No

Blue Wave Technology

Yes

Automatic sensitivity

Yes

Automatic temperature compensation

Yes

Front and rear tamper protection included

Yes

Separate LED indication: Microwave, PIR and Alarm

Yes

Signal Strength Indicators (SSI)

Yes

3V lithium battery included

1x CR123A

Minimum battery life (years)

2 years
Certifications & Warranty

Electrical conformity

THERE IS

EN50131

Grade 2

Environmental class

II

CA12.01427

Yes

Warranty

2 years

Download

Leaflet

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
