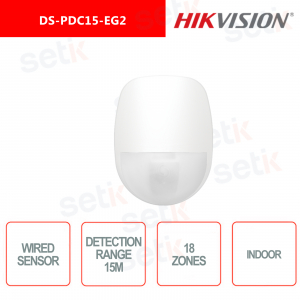

Hikvision PIR Sensor Motion Sensor Wired Curtain Range 15 Meters 6.3 Degrees 18 Zones Passive Infrared

Hikvision PIR Sensor Motion Sensor Wired Curtain Range 15 Meters 6.3 Degrees 18 Zones Passive Infrared
-35%

AXPRO HIKVISION

DS-PDC15-EG2 Hikvision wired PIR Curtain motion sensor. Passive infrared detection, with a radius of 15M and an angle of 6.3° , 18 detection zones, speed of 0.3/2m/s, light filter of 6500lux, with tamper protection.


Reference: DS-PDC15-EG2

Brand: Hikvision

EAN: 6941264064367

FIND INSTALLER

€34.89

€53.68 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity


AXPro Alarms Hikvision

Hikvision AXPro Alarms

DS-PDC15-EG2 | HIKVISION PIR CURTAIN MOVEMENT SENSOR - WIRED - AXPRO HUB

This Pyronix-Hikvision DS-PDC15-EG2 sensor is a PIR sensor that can be installed on walls, ceilings, door and window frames and is fully compatible with the Hikvision system.

DS-PDC15-EG2 this detector is the ideal choice to have a safe and secure home.


Main features

- Detection range 15m; angle 6.3°
- Digital temperature compensation
- Passive infrared sensor
- 6500 lux light filter
- Sealed optics
- Wired, with cable
- LED indicator

Documentation: Leaflet

Data sheet

DS-PDC15-EG2
Detection Performance
Detection method Passive infrared
Detection Range 15m
Detection angle 6.3°
Detection Zones 18
Detectable Speed 0.3 to 2m/s
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Features
Sealed optics Support
digital processing Support
TamperProtection Front
interface
Alarm Output Normally Closed
LED indicator Blue (Alarm)
Transmission
Transmission Method Wired
Electrical Characteristics
Power Supply 9 - 16VDC
power consumption 11mA Max
Typical Voltage 12VDC
General
Operation Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperatures -20°C to 60°C (-4°F to 140°F)
Operation Humidity 10% to 90%
Dimension(WxHxD) 65.4mm x 86.8mm x 45.5mm
Weight 68 g
Mounting Height 2.4 to 3.6m
Mounting method wall
Application Scenario indoors
Bracket Optional Wall & Ceiling Accessory

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog post!

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as Video Surveillance, Video Intercom and Access Control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional audiences and end users.

axpro hikvision alarm system


Intruder Verification

Intruder Verification is the HD video alarm service that manages video verification from any Hikvision IP camera. Provides recording of a 7-second video clip containing pre and post event which is sent from the control panel buffer or via the NVR/IP camera archive. The end user will be able to access the video and live feed of the camera directly from the HikConnect APP.



Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, system configuration will be extremely simple. The control unit immediately recognizes the radio devices via the Hik-ProConnect APP thanks to the QR Code scan. Manual activities and installation times decidedly optimized. After configuring the detectors and accessories, it will be possible to proceed with programming their parameters and delivering the system to the user.



Management via APP: Hik-ProConnect and Hik-Connect

Hikvision AXPro alarms are compatible with the Hikvision Official APPs Hik-ProConnect , dedicated to installers and Hik-Connect , for end users.

Hik-ProConnect: cloud platform specially designed for installers.
- Time optimization
- Adding devices remotely or on site
- Simplified programming
- Creation of specific rules for the plant
- Remote monitoring of the system
- Identification of any malfunctions and immediate resolution
- Sending automatic reports
- Reduction of plant visits and increased efficiency

Hik-ProConnect: cloud platform specially designed for end users.
- Full management of all Hikvision devices/products
- View system status
- Activation/deactivation of the alarm
- Receive alarm notifications wherever you are
- Monitoring of the status of each individual device [signal level, battery status, ambient temperature]

Downloads

Download the brochure Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
