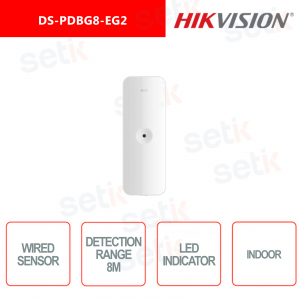

DS-PDBG8-EG2 Hikvision Wired glass break sensor - with cable - glass break detection - range 8m, viewing angle 120° , suitable for different types of glass, LED indicator, tamper protection,
DS-PDBG8-EG2 - HIKVISION GLASS BREAKAGE SENSOR - WIRED - WITH CABLE - 8M OPERATION RANGE - 120° VIEWING ANGLE - AXPRO HUB
This Hikvision DS-PDBG8-EG2 sensor is a sensor that can be installed on walls, ceilings, door and window frames and is fully compatible with the Hikvision system.
DS-PDBG8-EG2 with bidirectional wired technology, this detector is the ideal choice to have a protected and safe home. Main features - Broken glass sensor 8m Documentation: Leaflet |
Data sheet
DS-PDBG8-EG2 | |
Detection Performance yes | |
Detection method | Acoustic Sensor |
Detection Range | 8m |
Detection angle | 120° |
Glass Break Sensitivity | |
GlassType | Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing |
Glass Thickness | 2.4mm to 6.4mm |
glass size | 0.3m x 0.3m to 3m x 3m |
Features | |
digital processing | Support |
TamperProtection | Front |
interface | |
Alarm Output | Normally Closed |
LED indicator | Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm) |
Transmission | |
Transmission Technology | Wired |
Electrical Characteristics | |
Power Supply | 9-16VDC |
power consumption | 25mA |
Typical Voltage | 12V |
General | |
Operation Temperature | -10°C to 55°C (14°F to 131°F) |
Storage Temperatures | -20°C to 60°C (-4°F to 140°F) |
Operation Humidity | 10% to 90% |
Dimension(WxHxD) | 38.8mm×107mm×22.5mm |
Weight | 49.5g |
Mounting method | Wall, Ceiling |
Application Scenario | indoors |
AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog post! |
AXPRO SYSTEM - BEYOND SAFETYAXPro is the new intelligent and professional wireless system with latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as Video Surveillance, Video Intercom and Access Control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both professional audiences and end users.
|
