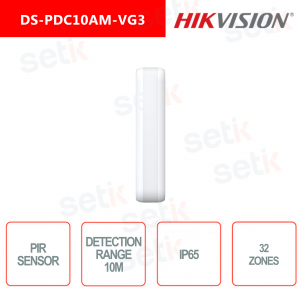

DS-PDC10AM-VG3 Hikvision Outdoor wired PIR AM detector with curtain lens and anti-masking. IR coverage up to 10m with horizontal 5 ° opening, LEDs, adjustable microwave range and 32 zones. Use mode selection lever (wall, ceiling). Angular bracket for wall mounting supplied. Power supply 9 ~ 16 Vdc - Max 22 mA. Dimensions: 29,2x134,4x39,5 mm. Degree of protection IP65
FIND INSTALLER
discover the available quantity
DS-PDC10AM-VG3 | HIKVISION AM IP65 PIR SENSOR
K-BAND | MAXIMIZED PROTECTION
The DS-PDC10AM-VG3 is one of the new sensors from Hikvision. This detector with PIR technology has a coverage up to 10m. Equipped with automatic temperature compensation, Blue Wave technology and IFT that guarantee detection reliability and accuracy. Thanks to its clean and discreet design, it is ideal for both residential and commercial environments. Easy installation thanks to SEOL / DEOL resistors.
Are you curious to learn more about the topic? Read the article on our blog! |
- Up to 10m of detection range Documentation: Brochure |
Data sheet
| DS-PDC10AM-VG3 | |
| Detection Performance | |
| Detection Method | Passive Infrared |
| Detection Range | Wall Mount? 10m |
| Detection Angle | 5th |
| Detection Zones | 32 |
| Detectable Speed | 0.2-3m / s |
| Sensitivity | Car |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Directional Detection | Support |
| Alarm Output | Normally Closed |
| LED Indicator | Blue (Alarm), Green + Orange (Mask) |
| Transmission Method | Wired |
| Power Consumption | 22mA Max |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Operation Temperature | -25 ° C to 60 ° C (-13 ° F to 140 ° F) |
| Storage Temperature | -25 ° C to 60 ° C (-13 ° F to 140 ° F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension (Wx HxD) | 29.2mm × 134.4mm × 39.5mm |
| Weight | 77.5g |
| Mounting Height | 2 to 4m |
| Mounting Method | Wall, Ceiling |
| Application Scenario | Indoor, Outdoor |
| Bracket | L-shaped adapter included |
