HIKVISION | K-BAND

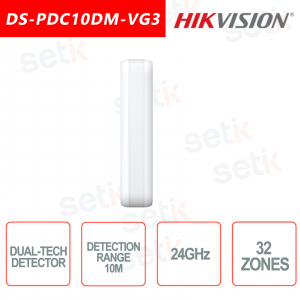

DS-PDC10DM-VG3 Hikvision K-Band 24GHz Outdoor DT wired detector with curtain lens and anti-masking. IR coverage up to 10m with opening of 5° horizontal and 113° vertical, Settable Alarm 8Exit/Entry/Both) Status LED, K-band microwave, Adjustable microwave range. Use mode selection lever (wall, ceiling). Selectable balancing resistors (1K, 2K2, 4K7, 5K6, 6K8). Corner bracket for wall fixing supplied. Power supply 9~16 Vdc – Max 22 mA. Dimensions: 29.2x134.4x39.5 mm. IP65 protection rating
FIND INSTALLER
€110.23
€169.58 -35%
discover the available quantity
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-PDC10DM-VG3 | HIKVISION INDOOR K-BAND DUAL TECHNOLOGY SENSOR MICROWAVE 24GHZ
K-BAND | MAXIMIZED PROTECTION
The DS-PDC10DM-VG3 is one of Hikvision's new k-band sensors. This dual-tech PIR + MW indoor detector is equipped with 24GHz K-Band microwave, coverage up to 10m. Equipped with automatic temperature compensation, Blue Wave and IFT technology which guarantee reliability and detection precision. Thanks to its clean and discreet design, it is ideal for both residential and commercial environments. Easy installation thanks to SEOL/DEOL resistors.
Curious to learn more about the topic? Read the article on our blog! |
- Up to 10m detection range Documentation: Brochures |
Data sheet
| DS-PDC10DM-VG3 | |
| Detection Performance | |
| Detection Method | Passive Infrared,Microwave |
| Detection Range | Wall Mount：10m Ceiling Mount：6m |
| Detection Angle | 5th |
| Detection Zones | 32 |
| Detectable Speed | 0.2～3m/s |
| Sensitivity | Car |
| White Light Filter | 6500lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Directional Detection | Support |
| Alarm Output | Normally Closed |
| LED Indicator | Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm) |
| Transmission Method | Wired |
| Power Consumption | 22mA Max |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperatures | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 29.2mm × 134.4mm × 39.5mm |
| Weight | 79g |
| Mounting Height | 2 to 4m |
| Mounting Method | Wall,Ceiling |
| Application Scenario | Indoor,Outdoor |
| Bracket | L-shaped adapter included |
