HIKVISION | K-BAND

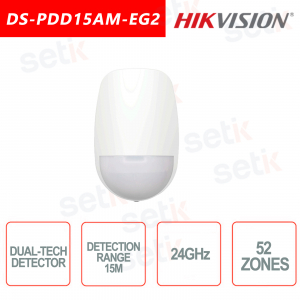

DS-PDD15AM-EG2 Hikvision K-Band 24GHz Wired DT Motion Detector, Volumetric Lens Door 15m / 85.9°, K-Band Microwave with adjustable range, Anti-masking and anti-blocking, Digital temperature compensation, Automatic sensitivity, Optics 3D, Anti-crawl protection Underneath, selectable integrated balance resistors (1K, 2K2, 4K7, 5K6 and 8K2), Mounting height 1.8 ~ 2.4 m; Power supply 9~16V, Max 25mA with protection against reverse polarity; IFT Technology, Front Tamper; Dimensions: 86.8x65.4x45.5mm
€61.85
€95.16 -35%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-PDD15AM-EG2 | HIKVISION INDOOR K-BAND DUAL TECHNOLOGY SENSOR MICROWAVE 24GHZ
K-BAND | MAXIMIZED PROTECTION
The DS-PDD15AM-EG2 is one of Hikvision's new k-band sensors. This dual-tech PIR + MW indoor detector is equipped with 24GHz K-Band microwave, coverage up to 15m. Equipped with automatic temperature compensation, Blue Wave and IFT technology which guarantee reliability and detection precision. Thanks to its clean and discreet design, it is ideal for both residential and commercial environments. Easy installation thanks to SEOL/DEOL resistors.
Curious to learn more about the topic? Read the article on our blog! |
- Optional/Automatic Sensitivity Documentation: Brochures |
Data sheet
DS-PDD15AM-EG2 | |
Detection Performance | |
Detection Method | Passive Infrared,Microwave |
15m | |
85.9° | |
52 | |
0.3~2m/s | |
Auto,Low | |
6500lux | |
24GHz(24.15~24.25GHz) | |
Support | |
Support | |
Support | |
Support | |
Support | |
Front | |
Support | |
Support | |
Support | |
Normally Closed | |
Green(PIR), Red(Microwave), Blue(Alarm) | |
Wired | |
9 to 16 VDC | |
12 VDC | |
25mA Max | |
-10 °C to 55 °C (14 °F to 131 °F) | |
-20 °C to 60 °C (-4 °F to 140 °F) | |
10% to 90% | |
65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1. 79") | |
100g | |
1.8m to 2.4m | |
Wall | |
Indoors | |
Optional wall & ceiling accessory |
