Hikvision Banda-K Pir Motion Sensor Wireless 868Mhz 12M 85.9 ° Pet Immunity

Hikvision Banda-K Pir Motion Sensor Wireless 868Mhz 12M 85.9 ° Pet Immunity
IN PROMOTION -35%

HIKVISION | BAND-K

DS-PDD12P-EG2-WE Hikvision Banda-K 24GHz Alarm Wireless Sensor Detector Radio PIR 868MHz bidirectional indoor up to 1.6Km, 24G microwave, Pet Immunity 30 kg , 52 zones, range 12m / 85.9 °, Digital Temperature Compensation, Tamper Tamper and Anti-tear, Radio Signal Level LED, 128bit coding, Lithium Battery (Included) 2 x BATT-CR123A.




Reference: DS-PDD12P-EG2-WE

Brand: Hikvision

EAN: 6941264063131

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

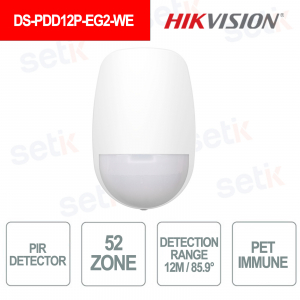

DS-PDD12P-EG2-WE | PIR PIR MOTION SENSOR - 868MHZ / 1600M - 12M RANGE OF ACTION - ANIMAL FILTER - AXPRO HUB

K-BAND | MAXIMIZED PROTECTION

The DS-PDD12P-EG2-WE is one of the new k-band sensors from Hikvision. This dual-tech dual technology PIR + MW indoor detector is equipped with a 24GHz K-Band microwave, coverage up to 12m. Equipped with automatic temperature compensation, Blue Wave technology and IFT that guarantee detection reliability and accuracy. Thanks to its clean and discreet design, it is ideal for both residential and commercial environments. Easy installation thanks to SEOL / DEOL resistors.

Incentivo fiscale

 Curious to learn more? Read the article on our blog!

868MHz PIR MOTION SENSOR - PET IMMUNE (DS-PDC10DM-VG3):

- Detection range 12m; angle 85.9 °
- Digital temperature compensation
- Passive infrared sensor
- Filter for animals up to 30Kg
- 6500 lux light filter
- Wireless range up to 1600M
- Signal Strength Indicator (SSI)
- Encrypted radio protocol
- 868MHz FM two-way radio technology

Documentation: Brochure

Data sheet

DS-PDD12P-EG2-WE
Detection Performance yes
Detection method Passive Infrared
Sensor Model SFG321-711
Detection Range 12m
Detection angle 85.9 °
Detection Zones 52
Detectable Speed 0.3-2m / s
Sensivity Auto, High, Pet
Pet Immunity 30Kg
White Light Filter 6500lux
Microwave Frequency 24GHz (24.15? 24.25GHz)
Digital Temperature Compensation Support
Creep Zone Protection Support
Feature
Digital Processing Support
Saled optics Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Power Switch Power Up Enrolling
LED Indicator Green (PIR), Red (Microwave), Blue (Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range (Free Space) 1.6Km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 2
Typical Voltage 3V
General
Operation Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage Temperature -20 ° C to 60 ° C (-4 ° F to 140 ° F)
Operation Humidity 10% to 90%
Dimension (WxHxD) 65.5mm × 103mm × 48.5mm
Weight 141g
Mounting Height 1.8 to 2.4m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional Wall & Ceiling Accessory

Download

Download the leaflet Depliant
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
