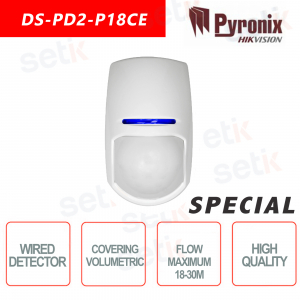

DS-PD2-P18CE KX18DC Hikvision Indoor wired detector, Volumetric coverage, Maximum range of 18-30 meters, Optimal installation height 1.8 meters / 2.4 meters, Underlying area protection, Blue Wave technology, Automatic sensitivity, Tamper Anti-open / Anti-tear, Infrared Alarm.
FIND INSTALLER
€24.10
€96.38 -75%
discover the available quantity
DS-PD2-P18CE | HIKVISION VOLUMETRIC DETECTOR
HIKVISION INDOOR WIRE DETECTOR
Hikvision aims to offer maximum security for its customers and that is why, every time it designs a product, it creates it Smart . Indoor wired detector, double detection technology, Volumetric coverage, maximum range of 18-30M
Documentation: Leaflet |
Data sheet
| DS-PD2-P18CE | ||
| Detectors technical characteristics | Blue Wave technology | Yes |
| Automatic sensitivity | Yes | |
| Digital temperature compensation | Yes | |
| DEOL resistor on board | Yes | |
| Tamper protection | Front and rear | |
| Optical, lens and detection characteristics | Maximum range | 18m or 30m long range |
| Volumetric coverage | Yes | |
| Dual technology | Yes | |
| Detection speed | 0.3 - 3.0m/s | |
| Coverage angle | 20 degree | |
| Detection zones | 46 curtain coverage or 24 long range | |
| Detection planes | 6 | |
| White light filter | 6500 Lux | |
| Protection | Ultraviolet light filter | |
| lens | 3 dimensional | |
| Optics | Sealed optics | |
| Detection method | Low noise dual element pyroelectric sensor | |
| Mounting | Wall mounted | Bracket included |
| Ceiling mounted | Bracket included | |
| Optimum coverage height | Max 4m (curtain coverage) or 1.8 - 2.4m (long range coverage) | |
| Electrical & battery | Operating voltage | 9-16V DC 13.8V DC typical |
| Quiescent current consumption | 13mA @ 12V (Min), 16mA @ 12V (Max) | |
| Contact Resistance | <10 ohms | |
| Relay outputs | 50mA 60VDC, 42VAC (RMS) | |
| Tamper switches | 12V 50mA | |
| Certifications and warranties | Security Grade | Fat 2 |
| Environmental class | II | |
| EN Certificate | EN50131-2-2:2008, EN50131-1, PD6662:2017 | |
| Certification type | IMQ | |
| Certificate number | CA12.01174 | |
| Electrical conformity | THERE IS | |
| Warranty | 5 years | |
| Environmental and operating features | Storage temperatures | -40C to +80C |
| Certified operating temperatures | -10C to +40C | |
| Nominal operating temperature | -30C to +60C | |
| Physical dimensions (H x W x D) | 117 x 69 x 50mm | |
| Weight | 125g without brackets | |
