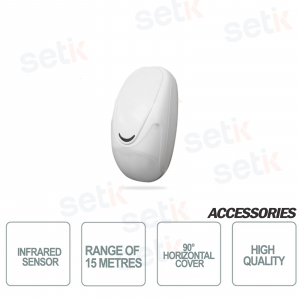

SMILE 19 - EN 50131-2-2 / GRADE 2 - PIR sensor
AMC digital infrared sensor with analysis system for speed and intensity. range of about 15 meters, opening angle of 90 ° and drag control.
FIND INSTALLER
€23.95
€28.18 -15%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
Did you know that ... WE ARE AMC PRIME DISTRIBUTORS?
SMILE 19 | AMC ELECTRONICS
VOLUMETRIC SENSOR COVERAGE OF 15 METERS - HORIZONTAL COVERAGE 90 °The digital infrared sensor with analysis system for speed and intensity. With the simultaneous comparison of these 2 information it is able to discriminate repetitive movements from real intrusions, lowering the percentage of false alarms. Even in the presence of thermal variations, the digital compensation system always guarantees excellent effectiveness. It has a range of about 15 meters, with an opening angle of 90 ° and anti-creep control.
Product details
- Digital infrared sensor - AMC
- Range of 15 meters
- Horizontal coverage 90 °
- Duration of alarm 2 "
- WALK TEST LED
- Solid state relay
- Anti-crawl device
- Tamper / Anti-opening device
- Pulse counter
- RFI protection of 30 V / m
- Thermal Compensation
- Device with Digital Analysis
- Possibility of joint
- Power supply 13.8Vdc
- Consumption 12 mA
- ABS cover
- Dimensions 110 x 60 x 46mm
Data sheet
| Model | SMILE 19 |
| EN 50131-2-4 / GRADE 2 | yes |
| Range | 15 mt |
| Horizontal coverage | 90 ° |
| Alarm duration | 2" |
| Led walk test | Yes |
| solid state relay | Yes |
| separate alarm and tamper Relays | - |
| eol end of line resistors | - |
| Anti creep device | Yes |
| tamper / anti-opening device | Yes |
| Pulse counter | Yes |
| RFI Protection | 30 V / m |
| ThermalL Compensation | Yes |
| Device with digital analysis | Yes |
| Possibility Joint | Yes |
| Power Supply | 13.8 Vdc |
| Consumption | 12 mA |
| Cover | ABS |
| Pet Immunity | - |
| Operating Temperature | -10 ° C ~ + 40 ° C |
| Dimension | 110 x 64 x 46mm |
Further details
INFRARED SENSORS - AMC:
| Model | SMILE 20 SMILE 20 / P |
SMILE 19 SMILE19 / P |
SMILE 21 SMILE 21 / P |
| EN 50131-2-4 / GRADE 2 | Yes | Yes | Conforms |
| Range | 15 mt | 15 Mt | 15 mt |
| Horizontal coverage | 90 ° | 90 ° | 90 ° |
| Alarm duration | 2" | 2" | 2" |
| Led walk test | Yes | Yes | Yes |
| solid state relay | Yes | Yes | Yes |
| separate alarm and tamper Relays | - | - | Yes |
| eol end of line resistors | 1K, 2k2, 4k7, 5k6, 8k2 | - | - |
| Anti creep device | Yes | Yes | Yes |
| tamper / anti-opening device | Yes | Yes | Yes |
| Pulse counter | Yes | Yes | Yes |
| RFI Protection | 30 V / m | 30 V / m | 30 V / m |
| ThermalL Compensation | Yes | Yes | Yes |
| Device with digital analysis | Yes | Yes | Yes |
| Possibility Joint | Yes | Yes | Yes |
| Power Supply | 13.8 Vdc | 13.8 Vdc | 13.8 Vdc |
| Consumption | 12 mA | 12 mA | 12 mA |
| Cover | ABS | ABS | abs |
| Pet Immunity | Smile 20 / P | Smile 19 / P | Smile 21 / P |
| Operating Temperature | -10 ° C ~ + 40 ° C | -10 ° C ~ + 40 ° C | -10 ° C ~ + 40 ° C |
| Dimension | 110 x 64 x 46mm | 110 x 64 x 46mm | 110 x 64 x 46mm |
