MOUSE09 / P - EN 50131-2-4 / GRADE 2 - Double technology - PET IMMUNITY

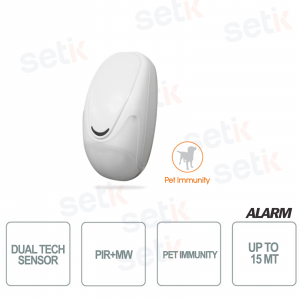

Dual technology sensor AMC Mouse 09 / P Pet Immunity PIR / MW dual tech burglar alarm with integrated EOL resistors and 15m range. 90 ° opening angle, double element pyroelectric, anti-opening tamper, anti-creep device and pulse counter. Interlocking closure without screws. AMC Elettronica MOUSE 09 / P
Reference: MOUSE 09/P
Brand: AMC
EAN: 8057457613255
FIND INSTALLER
Quantity discount:
from 2
to ∞
:
54,46 €
(-13%)
from 1
to 1
:
62,63 €
https://www.setik.biz/en/sensors/4946-amc-mouse-09-p-pet-immunity-dual-technology-sensor-eol-amc-resistors.html
€62.63
€73.69 -15%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Did you know that ... WE ARE AMC PRIME DISTRIBUTORS?
Discover all the AMC products in our catalog
MOUSE 09 / P | AMC ELECTRONICS
PIR + MW DOUBLE TECHNOLOGY SENSOR WITH IMMUNE EOL - PET RESISTORSDual technology sensor AMC Mouse 09 / P Pet Immunity PIR / MW dual tech burglar alarm with integrated EOL resistors and 15m range. 90 ° opening angle, double element pyroelectric, anti-opening tamper, anti-creep device and pulse counter. Interlocking closure without screws. AMC Electronics
- Motion detector - AMC
- Dual tech dual tech PIR + MW sensor
- PET IMMUNITY
- Internal EOL end-of-line resistors for single and double balancing, integrated
- 90 ° opening angle
- Maximum range 15 meters
- Anti-opening tamper
- Anti-creep device
- Pulse counter
- Interlocking closure without screws
- White color
- EN 50131-2-4 certified
- Grade 2
- Possibility of installation also with joint
- Dimensions: 110 x 60 x 46 mm
| Model | MOUSE 09 / P |
| EN 50131-2-4 / Grade 2 | yes |
| Range | 15 mt |
| Angle | 90 ° |
| Alarm Time | 2'' |
| Walk Test's Led | Yes |
| Microwave Frequency | 9.3 - 9.9 - 10.5 Ghz |
| Solid State Relay | yes |
| Internal EOL resistors | 1K, 2k2, 4k7, 5k6, 8k2 |
| Creep Zone | Yes |
| Antiopening Tamper | Yes |
| Pulse Counter | Yes |
| RFI Protection | 30 V / m |
| Temperature Compensation | Yes |
| Digital Analysis | Yes |
| Bracket Available | Yes |
| Power Supply | 13.8 Vdc |
| Consumption | 23 mA |
| Housing | ABS |
| Pet Immunity | Yes |
| Operating Temperature | from -10 ° C to + 40 ° C |
| Dimensions | 110 x 60 x 46 mm |
OUTDOOR SIRENS - AMC:
| Model | MOUSE 02 | MOUSE 09 | MOUSE 09 / P |
| EN 50131-2-4 / GRADE 2 | - | Yup | Yup |
| EN 50131-2-4 / GRADE 3 | yes | - | - |
| CAPACITY | 15 mt | 15 mt | 15 mt |
| HORIZONTAL COVERAGE | 90 ° | 90 ° | 90 ° |
| ALARM DURATION | 2" | 2" | 2" |
| OPERATING SELF-DIAGNOSIS | Yup | - | - |
| WALK TEST LED | Yup | Yup | Yup |
| MICROWAVE FREQUENCY | 9.3 - 9.9 - 10.5 Ghz | ||
| SOLID STATE RELAY | Yup | Yup | Yup |
| END OF LINE RESISTORS EOL | 1K, 2k2, 4k7, 5k6, 8k2 | ||
| ANTI-SLIP DEVICE | Yup | Yup | Yup |
| TAMPER / ANTI-OPENING DEVICE | Yup | Yup | Yup |
| ANTI-MASKING DEVICE | Yup | - | - |
| PULSE COUNTER | Yup | Yup | Yup |
| RFI PROTECTION | 30 V / m | 30 V / m | 30 V / m |
| THERMAL COMPENSATION | Yup | Yup | Yup |
| DEVICE WITH DIGITAL ANALYSIS | Yup | Yup | Yup |
| POSSIBILITY JOINT | Yup | Yup | Yup |
| POWER SUPPLY | 13.8 Vdc | 13.8 Vdc | 13.8 Vdc |
| CONSUMPTION | 23 mA | 23 mA | 23 mA |
| COVER | ABS | ABS | ABS |
| PET IMMUNITY | - | - | Yup |
| OPERATING TEMPERATURE | from -10 ° C to + 40 ° C | ||
| DIMENSIONS | 110 x 60 x 46 mm | ||
- Brochure
