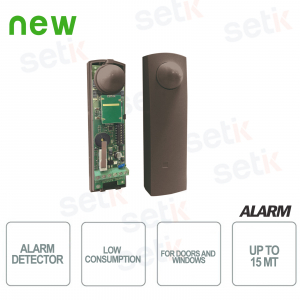

DT16-M - EN 50131-2-4 / GRADE 2 - Double Technology
Double technology sensor for doors and windows , range from 3 to 10 meters, opening angle 165 ° , microwave frequency 10.525 GHz, IP 42, maximum absorption 18 mA. Power supply 13.8 Vdc
FIND INSTALLER
Did you know that ... WE ARE AMC PRIME DISTRIBUTORS?
Discover all the AMC products in our catalog
DT 16-M | AMC ELECTRONICS
DOUBLE TECHNOLOGY PIR + MW SENSOR WITH CURTAIN EFFECT - DOORS & WINDOWSThe DT 16-M sensor is one of the best curtain effect sensors on the market.
This device is equipped with dual technology ( INFRARED + MICROWAVE at 10GHz ), ideal for installation on doors and windows.
Anti-tear protection, anti-opening tamper, signaling LED with relative disabling jumper m system for recognizing the direction of the alarm. Extremely reliable product
SEE ALSO THE DT 16 VERSION |
Product details
- Dual Technology Sensor - AMC
- EN 50131-2-4 / GRADE 2 / CLASS 4
- Range from 3 to 10 meters
- Opening angle 165 °
- Orientation tent
- Duration of alarm 4 "
- Led block with system off
- WALK TEST LED
- Chime
- Pir and mw anti-blinding system
- microwave frequency
- alarm relay
- anti-opening device
- rfi protection
- IP protection degree
- operating temperature
- thermal compensation
- power supply voltage
- maximum absorption
- ABS cover
- dimensions 145 x 137 x 30
| Model | DT 16-M |
| EN 50131-2-4 / GRADE 2 | yes |
| Range | from 2 to 3.5 mt |
| Angle | 165 ° |
| Curtain lens orientation | Yes |
| Alarm Time | 4 " |
| Walk Test's LED | Yes |
| Antiopening Tamper | yes |
| RFI Protection | 30 V / m |
| Temperature Compensation | Yes |
| Power Supply | 10 - 15 Vdc |
| Consumption in stand by | 18 mA |
| Housing | ABS |
| Protection grade | IP 54 |
| Operating Temperature | from -25 ° C to + 55 ° C |
| Dimensions | 37 x 130 x 37 mm |
CURTAIN EFFECT SENSORS - AMC:
| Model | DT 16 | IF16 / L | IF16 / T |
| EN 50131-2-4 / GRADE 2 | yes | - | - |
| EN 50131-2-2 / GRADE 2 | - | yes | yes |
| Range | from 2 to 3,5mt | from 2 to 3,5mt | from 2 to 3,5mt |
| Angle | 165 ° | 165 ° | 165 ° |
| Curtain lens orientation | Yes | Yes | Yes |
| Alarm Time | 4 " | 4 " | 4 " |
| Programmable alarm delay | - | yes | yes |
| High power led for lightning and / or alarm | - | yes | - |
| Walk test's led | yes | yes | yes |
| Double sound buzzer (entrance / exit) | - | yes | - |
| Antiopening Tamper | yes | yes | yes |
| RFI Protection | 30 V / m | 30 V / m | 30 V / m |
| Temperature Compensation | Yes | Yes | Yes |
| Power Supply | 10 - 15 Vdc | 10 - 15 Vdc | 10 - 15 Vdc |
| Consumption in stand by | 18 mA | 12 mA | 12 mA |
| Housing | ABS | ABS | ABS |
| Protection grade | IP54 | IP54 | IP54 |
| Operating Temperature | from -25 ° C to + 55 ° C | from -25 ° C to + 55 ° C | from -25 ° C to + 55 ° C |
| Dimensions | 37 x 130 x 37 mm | 37 x 130 x 37 mm | 37 x 130 x 37 mm |
